Overview
The FSL538HPG is a current-mode PWM (Pulse Width Modulation) controller produced by onsemi. This controller is designed to handle dynamic operations efficiently, combining features such as line detection and burst-mode operation. It is particularly suited for flyback converter applications, offering robust performance and reliability.
Key Specifications
| Parameter | Value |
|---|---|

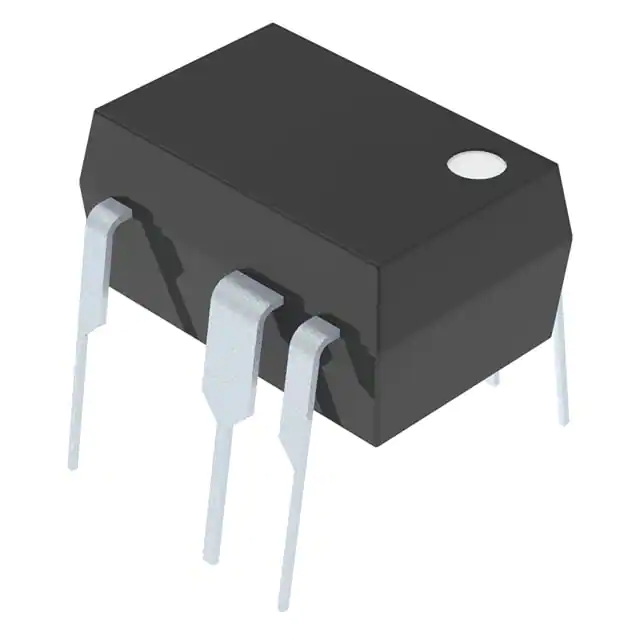

| Package Type | DIP7 |
| Output Current | 660 mA |
| Operating Voltage | Up to 800 V |
| Switching Frequency | 130 kHz |
| Number of Channels | 1 |
Key Features
- Current-mode PWM control for precise output regulation
- Line detection and burst-mode operation for enhanced dynamic response
- High operating voltage up to 800 V
- Switching frequency of 130 kHz
- Single-channel design in DIP7 package
Applications
The FSL538HPG is primarily used in flyback converter applications, which are common in power supplies, DC-DC converters, and other power management systems. Its robust design and features make it suitable for a variety of industrial, consumer, and automotive electronics.
Q & A
- What is the FSL538HPG? The FSL538HPG is a current-mode PWM controller produced by onsemi.
- What is the maximum operating voltage of the FSL538HPG? The maximum operating voltage is up to 800 V.
- What is the switching frequency of the FSL538HPG? The switching frequency is 130 kHz.
- What package type does the FSL538HPG come in? The FSL538HPG comes in a DIP7 package.
- What are the key features of the FSL538HPG? Key features include current-mode PWM control, line detection, burst-mode operation, and a single-channel design.
- What applications is the FSL538HPG suited for? The FSL538HPG is suited for flyback converter applications in power supplies, DC-DC converters, and other power management systems.
- How many channels does the FSL538HPG have? The FSL538HPG has one channel.
- What is the output current capability of the FSL538HPG? The output current capability is 660 mA.
- Where can I find more detailed specifications for the FSL538HPG? Detailed specifications can be found on the official onsemi website, as well as on distributor websites like Mouser, Digi-Key, and TME.
- Is the FSL538HPG available for purchase through major electronics distributors? Yes, the FSL538HPG is available through major electronics distributors such as Mouser, Digi-Key, and TME.
