Overview
The FAN4852IMU8X is a dual, rail-to-rail output, low-power CMOS operational amplifier produced by onsemi. This component is designed to offer high performance with low power consumption, making it suitable for a variety of applications. However, it is important to note that the FAN4852IMU8X is currently obsolete and no longer manufactured by onsemi.
Key Specifications
| Parameter | Value |
|---|---|
| Supply Voltage - Max | 5 V |
| Supply Voltage - Min | 3 V |
| Operating Supply Current | 800 μA |
| Output Current per Channel | ±50 mA |

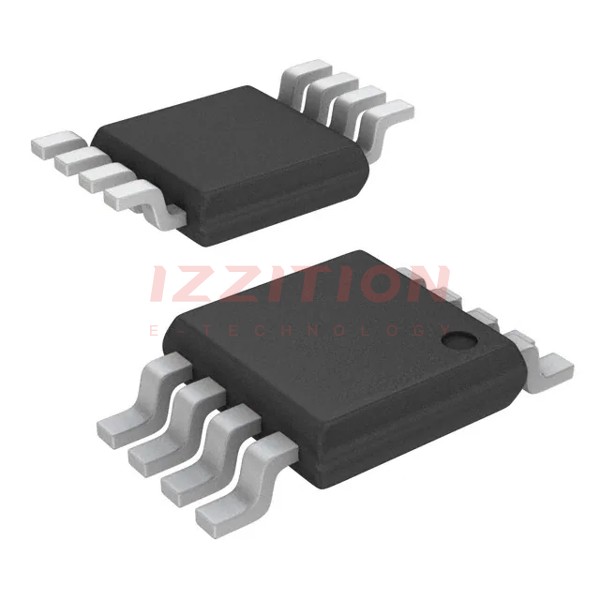

| Package Type | Micro8 |
Key Features
- Dual, rail-to-rail output operational amplifier
- Low power consumption: 800 μA of supply current
- High output current capability: ±50 mA per channel
- CMOS technology for low noise and high performance
- Compact Micro8 package
Applications
The FAN4852IMU8X is suitable for various applications requiring low power and high performance, such as:
- Signal conditioning
- Battery-powered devices
- Automotive systems
- Medical devices
- Current sensing applications
Q & A
- What is the maximum supply voltage for the FAN4852IMU8X?
The maximum supply voltage is 5 V.
- What is the minimum supply voltage for the FAN4852IMU8X?
The minimum supply voltage is 3 V.
- How much supply current does the FAN4852IMU8X consume?
The FAN4852IMU8X consumes 800 μA of supply current.
- What is the output current per channel of the FAN4852IMU8X?
The output current per channel is ±50 mA.
- Is the FAN4852IMU8X still in production?
No, the FAN4852IMU8X is obsolete and no longer manufactured by onsemi.
- What package type is the FAN4852IMU8X available in?
The FAN4852IMU8X is available in the Micro8 package.
- What are some typical applications for the FAN4852IMU8X?
Typical applications include signal conditioning, battery-powered devices, automotive systems, medical devices, and current sensing applications.
- What technology is used in the FAN4852IMU8X?
The FAN4852IMU8X uses CMOS technology.
- Why is the FAN4852IMU8X considered low power?
The FAN4852IMU8X is considered low power due to its low supply current consumption of 800 μA.
- Where can I find substitutes for the FAN4852IMU8X?
Substitutes can be found on the Digi-Key website or other electronic component distributors.
