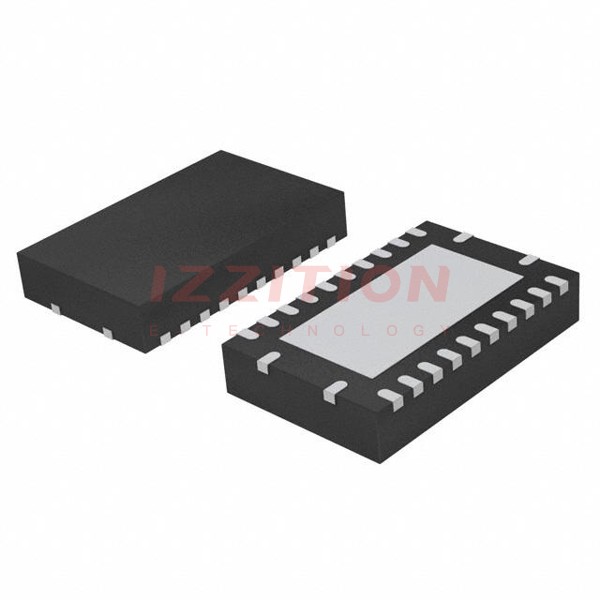

TJA1124AHG/0Z
  • Share:

NXP USA Inc. TJA1124AHG/0Z

Manufacturer No:
TJA1124AHG/0Z
Manufacturer:
NXP USA Inc.
Package:
Tape & Reel (TR)
Description:
IC TRANSCEIVER FULL 4/4 24DHVQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The TJA1124AHG/0Z, produced by NXP USA Inc., is a quad Local Interconnect Network (LIN) commander channel device. It serves as the interface between a LIN commander protocol controller and the physical bus in a LIN network. Each of its four channels incorporates a LIN transceiver and LIN commander termination, aligning with the LIN physical layer of the Open System Interconnect (OSI) model. This device is specifically designed for automotive LIN commander applications, supporting multiple LIN commander channels and ensuring excellent ElectroMagnetic Compatibility (EMC) performance.

Key Specifications

ParameterValueUnit
Package TypeDHVQFN24-
Package Dimensions3.5 mm × 5.5 mm × 0.85 mm-
Number of Terminals24-
Operating Temperature Range-40 °C to +150 °C°C
VBAT Supply Voltage Range5.0 V to 28 VV
VIO Supply Voltage Range2.97 V to 5.5 VV
Battery Supply Current (Normal Mode)4.3 mA to 9 mAmA
Battery Supply Current (Low Power Mode)6 µA to 17.2 µAµA
I/O Supply Current (Normal Mode)Up to 1 mAmA
ESD Robustness±6 kV according to IEC61000-4-2kV

Key Features

  • Quad LIN commander channels, each with a LIN transceiver and LIN commander termination.
  • Leadless DHVQFN24 package supporting improved Automated Optical Inspection (AOI) capability.
  • Excellent ElectroMagnetic Immunity (EMI) and high ESD robustness (±6 kV according to IEC61000-4-2).
  • Bus terminal and battery pin protected against transients in the automotive environment (ISO 7637) and short-circuit proof to battery and ground.
  • TXD dominant timeout function and LIN dominant timeout function.
  • Thermal protection and overtemperature protection modes.
  • Compliance with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO 17987-4:2016 (12 V LIN), and SAE J2602-1.
  • Supports Normal mode and Low Power mode, along with additional operating modes such as battery supply undervoltage, intermediate VIO undervoltage, and wake-up signalling.

Applications

The TJA1124AHG/0Z is primarily intended for automotive LIN commander applications, where it can manage multiple LIN commander channels. It is suitable for various automotive systems that require reliable and robust LIN communication, including vehicle networking, driver assistance systems, and other automotive control units.

Q & A

  1. What is the TJA1124AHG/0Z used for? The TJA1124AHG/0Z is used as an interface between a LIN commander protocol controller and the physical bus in a LIN network, specifically in automotive applications.
  2. How many LIN commander channels does the TJA1124AHG/0Z support? The TJA1124AHG/0Z supports four LIN commander channels.
  3. What is the package type of the TJA1124AHG/0Z? The package type is DHVQFN24.
  4. What are the dimensions of the TJA1124AHG/0Z package? The package dimensions are 3.5 mm × 5.5 mm × 0.85 mm.
  5. What is the operating temperature range of the TJA1124AHG/0Z? The operating temperature range is -40 °C to +150 °C.
  6. Is the TJA1124AHG/0Z compliant with automotive standards? Yes, it is compliant with LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, ISO 17987-4:2016 (12 V LIN), and SAE J2602-1.
  7. What kind of protection does the TJA1124AHG/0Z offer? It offers excellent ElectroMagnetic Immunity (EMI), high ESD robustness, bus terminal and battery pin protection against transients, and thermal protection.
  8. What are the main operating modes of the TJA1124AHG/0Z? The main operating modes are Normal mode and Low Power mode, with additional modes such as battery supply undervoltage, intermediate VIO undervoltage, and wake-up signalling.
  9. How much current does the TJA1124AHG/0Z consume in Low Power mode? The current consumption in Low Power mode is between 6 µA and 17.2 µA.
  10. Is the TJA1124AHG/0Z short-circuit proof? Yes, the bus terminal is short-circuit proof to battery and ground.

Product Attributes

Type:Transceiver
Protocol:LIN
Number of Drivers/Receivers:4/4
Duplex:Full
Receiver Hysteresis:-
Data Rate:20kBd
Voltage - Supply:5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:24-VFQFN Exposed Pad
Supplier Device Package:24-DHVQFN (5.5x3.5)
0 Remaining View Similar

In Stock

$2.82
332

Please send RFQ , we will respond immediately.

Same Series
DD15S20L0S
DD15S20L0S
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S5WV5X
DD15S2S5WV5X
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S5WV50/AA
DD15S2S5WV50/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M2S5WV5X
DD26M2S5WV5X
CONN D-SUB HD PLUG 26P SLDR CUP
PCD50M98S0T2X
PCD50M98S0T2X
DSUB 50M STR CONTACT J/S TIN
CBC13W3S10HT20/AA
CBC13W3S10HT20/AA
CONN D-SUB RCPT 13POS CRIMP
DD26S2000X/AA
DD26S2000X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC9W4S10HV5S/AA
CBC9W4S10HV5S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S50T2X/AA
DD26S2S50T2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V50
DD26S200V50
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50T20/AA
DD26S2S50T20/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S3200V30
DD44S3200V30
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number TJA1124AHG/0Z TJA1124BHG/0Z
Manufacturer NXP USA Inc. NXP USA Inc.
Product Status Active Active
Type Transceiver Transceiver
Protocol LIN LIN
Number of Drivers/Receivers 4/4 4/4
Duplex Full Full
Receiver Hysteresis - -
Data Rate 20kBd 20kBd
Voltage - Supply 5V ~ 28V 5V ~ 28V
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Package / Case 24-VFQFN Exposed Pad 24-VFQFN Exposed Pad
Supplier Device Package 24-DHVQFN (5.5x3.5) 24-DHVQFN (5.5x3.5)
