Overview
The TDA8029HL/C207,151 is a specialized integrated circuit designed by NXP Semiconductors, specifically tailored for smart card reader applications. This component is part of NXP's low-power smart card interface family, offering a robust and cost-effective solution for various smart card-based systems. The TDA8029HL integrates multiple functions necessary for smart card operations, making it a comprehensive one-chip solution.
Key Specifications
| Parameter | Value | Description |
|---|---|---|
| Part Number | TDA8029HL/C207,151 | Unique identifier for the component |
| Manufacturer | NXP Semiconductors / Freescale | The company that produces the component |
| Description | IC SMART CARD READER 32-LQFP | General description of the component's function |
| Voltage - Supply | 2.7 V ~ 6 V | The range of supply voltage the component can operate with |

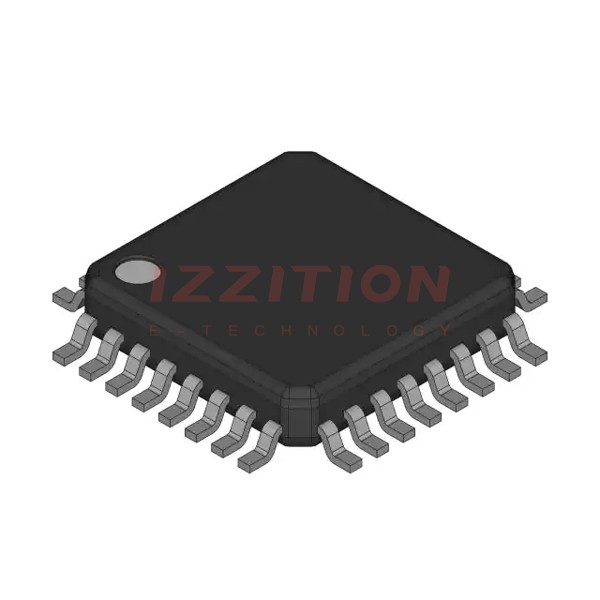

| Package / Case | 32-LQFP (7x7) | The physical package type and dimensions of the component |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Compliance with lead-free and RoHS regulations |
| Interface | Serial | The type of interface the component uses |
| Mounting Type | Surface Mount | The method of mounting the component on a PCB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | The component's sensitivity to moisture during storage and handling |
Key Features
- Low Power Consumption: The TDA8029HL is designed with low power consumption in mind, making it suitable for battery-powered devices and energy-efficient applications.
- Wide Supply Voltage Range: The component can operate within a supply voltage range of 2.7 V to 6 V, providing flexibility in various system designs.
- Robust Smart Card Interface: It includes multiple power reduction modes and robust smart card interface capabilities, ensuring reliable and efficient smart card operations.
- Comprehensive One-Chip Solution: Integrates all necessary functions for smart card reading, simplifying the design and reducing the overall component count in the system.
- Lead-Free and RoHS Compliant: Meets environmental regulations, making it suitable for use in a wide range of applications globally.
Applications
- Smart Card Readers: The primary application is in smart card readers, where it provides a complete and robust interface for various smart card types.
- Payment Systems: Used in payment terminals, ATMs, and other financial transaction systems that rely on smart cards.
- Access Control Systems: Employed in access control systems that use smart cards for authentication and authorization.
- Healthcare and Identity Verification: Utilized in healthcare and identity verification systems that require secure and reliable smart card interactions.
Q & A
- What is the TDA8029HL/C207,151 used for?
The TDA8029HL/C207,151 is used as a smart card reader interface, providing a comprehensive solution for smart card operations.
- What is the supply voltage range of the TDA8029HL/C207,151?
The supply voltage range is 2.7 V to 6 V.
- What type of package does the TDA8029HL/C207,151 come in?
The component comes in a 32-LQFP (7x7) package.
- Is the TDA8029HL/C207,151 lead-free and RoHS compliant?
Yes, it is lead-free and RoHS compliant.
- What is the mounting type of the TDA8029HL/C207,151?
The mounting type is surface mount.
- What are the typical applications of the TDA8029HL/C207,151?
Typical applications include smart card readers, payment systems, access control systems, and healthcare and identity verification systems.
- Does the TDA8029HL/C207,151 support multiple power reduction modes?
Yes, it supports multiple power reduction modes to minimize power consumption.
- What is the moisture sensitivity level (MSL) of the TDA8029HL/C207,151?
The MSL is 1 (Unlimited).
- Where can I find the datasheet for the TDA8029HL/C207,151?
The datasheet can be found on the NXP Semiconductors website or through authorized distributors.
- What is the standard lead time for the TDA8029HL/C207,151 from the manufacturer?
The standard lead time is 8 weeks.
