Overview

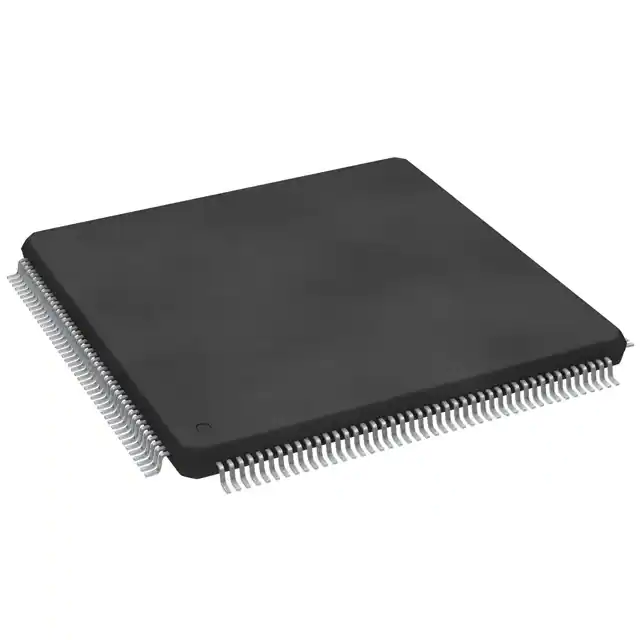

The SPC5745RK1MLU3 is a high-performance microcontroller from NXP USA Inc., designed for automotive and industrial applications. It belongs to the MPC57xx series and is compliant with the AEC-Q100 standard, ensuring reliability and robustness in demanding environments. This microcontroller features a tri-core architecture based on the e200z4 core, operating at a frequency of 150 MHz. It is packaged in a 176-terminal LQFP (Low Profile Quad Flat Package) with a body size of 24 mm x 24 mm x 1.4 mm and a 0.5 mm pitch.
Key Specifications
| Specification | Details |
|---|---|
| Core Type | e200z4 Tri-Core |
| Operating Frequency | 150 MHz |
| Flash Memory | 3 MB (3M x 8) |
| Package Type | LQFP176 (24x24 mm, 0.5 mm pitch) |
| Compliance | AEC-Q100 |
Key Features
- Tri-core architecture for enhanced processing power and flexibility.
- High-speed operation at 150 MHz.
- Large flash memory of 3 MB.
- AEC-Q100 compliance for automotive reliability.
- LQFP176 package for compact and efficient design.
Applications
The SPC5745RK1MLU3 is designed for various demanding applications, including:
- Automotive systems: Engine control, transmission control, and advanced driver-assistance systems (ADAS).
- Industrial automation: Control systems, robotics, and high-performance industrial control.
- Other applications: Medical devices, aerospace, and energy management systems.
Q & A
- What is the core type of the SPC5745RK1MLU3 microcontroller?
The SPC5745RK1MLU3 features an e200z4 tri-core architecture. - What is the operating frequency of the SPC5745RK1MLU3?
The operating frequency is 150 MHz. - How much flash memory does the SPC5745RK1MLU3 have?
The microcontroller has 3 MB of flash memory. - What is the package type of the SPC5745RK1MLU3?
The package type is LQFP176. - Is the SPC5745RK1MLU3 compliant with any automotive standards?
Yes, it is compliant with the AEC-Q100 standard. - What are the typical applications of the SPC5745RK1MLU3?
Typical applications include automotive systems, industrial automation, medical devices, aerospace, and energy management systems. - What is the body size of the LQFP176 package?
The body size is 24 mm x 24 mm x 1.4 mm. - What is the pitch of the LQFP176 package?
The pitch is 0.5 mm. - Who is the manufacturer of the SPC5745RK1MLU3?
The manufacturer is NXP USA Inc. - Where can I find more detailed specifications for the SPC5745RK1MLU3?
You can find detailed specifications on the official NXP website, Digi-Key, or other authorized distributors.
