Overview

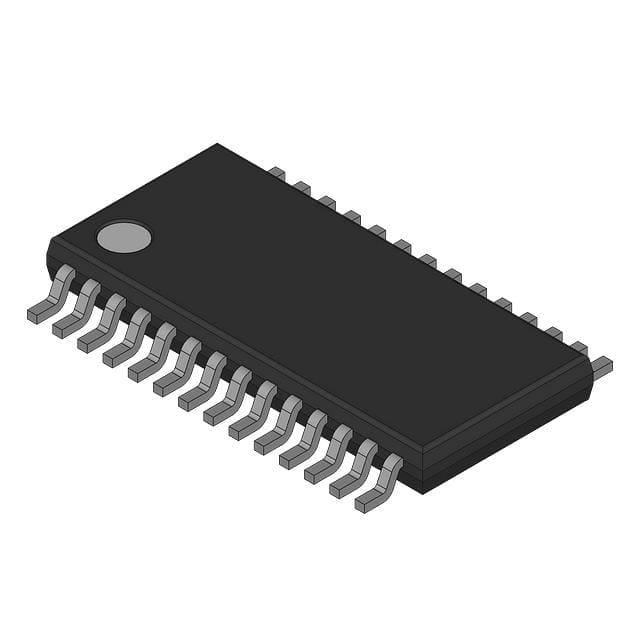

The SC16IS762IPW128, produced by NXP USA Inc., is a dual-channel high-performance UART (Universal Asynchronous Receiver-Transmitter) with an I²C-bus/SPI interface. This component is designed to offer seamless protocol conversion from I²C-bus/SPI to RS-232/RS-485 and is fully bidirectional. It is particularly suited for hand-held, battery-operated applications due to its low operating and sleeping current and compact packaging options (HVQFN32 and TSSOP28).
Key Specifications
| Specification | Description |
|---|---|
| Interface | I²C-bus or SPI selectable |
| UART Channels | Dual full-duplex UART |
| Data Rates | Up to 5 Mbit/s |
| SPI Clock Speed | Up to 15 Mbit/s |
| IrDA SIR Support | Up to 1.152 Mbit/s |
| Operating Voltage | 3.3 V or 2.5 V |
| Temperature Range | -40°C to +95°C |
| FIFO Size | 64 bytes (transmitter and receiver) |
| Programmable I/O Pins | Up to 8 pins |
| Flow Control | Auto hardware and software flow control |
| RS-485 Support | Automatic RS-485 support with slave address detection |
Key Features
- Dual full-duplex UART with I²C-bus/SPI interface
- Seamless protocol conversion from I²C-bus/SPI to RS-232/RS-485
- Low operating and sleeping current, ideal for battery-operated devices
- Compact packaging options: HVQFN32 and TSSOP28
- Auto hardware and software flow control using RTS/CTS and Xon/Xoff characters
- Automatic RS-485 support with driver direction control via RTS signal
- Up to eight programmable I/O pins
- Internal register set backward compatible with 16C450
- Software reset capability independent of hardware reset signal
- Built-in IrDA encoder and decoder supporting IrDA SIR up to 1.152 Mbit/s
Applications
The SC16IS762IPW128 is suitable for a variety of applications, including:
- Hand-held and portable devices due to its low power consumption and compact size.
- Battery-operated devices requiring efficient power management.
- Industrial automation systems that need reliable and high-speed serial communication.
- Embedded systems requiring protocol conversion between I²C/SPI and RS-232/RS-485.
- Wireless communication devices utilizing IrDA SIR.
Q & A
- What is the primary function of the SC16IS762IPW128?
The SC16IS762IPW128 is a dual-channel UART with an I²C-bus/SPI interface, designed for seamless protocol conversion from I²C-bus/SPI to RS-232/RS-485.
- What are the supported data rates for the UART?
The UART supports data rates up to 5 Mbit/s.
- What is the maximum SPI clock speed supported by the SC16IS762IPW128?
The SC16IS762IPW128 supports SPI clock speeds up to 15 Mbit/s.
- Does the SC16IS762IPW128 support IrDA SIR?
- What are the operating voltage options for this component?
The component can operate at 3.3 V or 2.5 V.
- What is the temperature range for the SC16IS762IPW128?
The component operates within a temperature range of -40°C to +95°C.
- How many bytes of FIFO are available for the transmitter and receiver?
Both the transmitter and receiver have 64 bytes of FIFO.
- Does the SC16IS762IPW128 support automatic RS-485?
- Can the SC16IS762IPW128 be reset via software?
- How many programmable I/O pins are available on the SC16IS762IPW128?
Up to eight programmable I/O pins are available.
