Overview

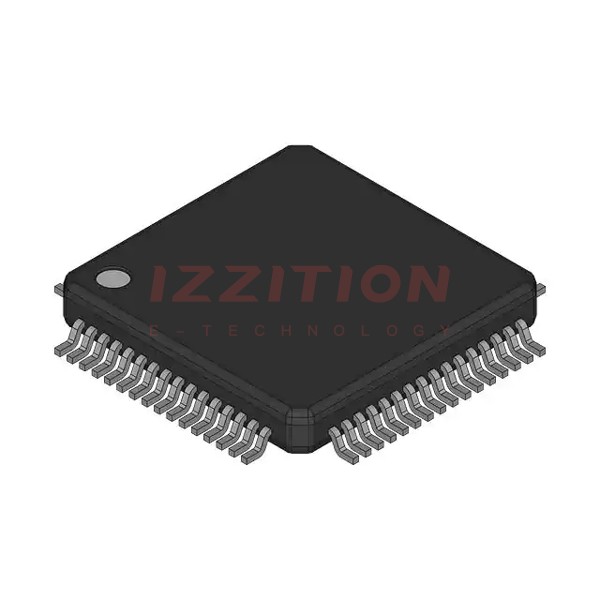

The S9S12XS256J0MAE,557 is a 16-bit microcontroller from NXP USA Inc., part of the HCS12X series. This microcontroller is designed for a wide range of applications requiring robust performance, low power consumption, and advanced peripherals. It features a 40MHz HCS12X core, 256KB of FLASH program memory, and 12KB of RAM. The device is packaged in a 64-LQFP (10x10) surface mount package, making it suitable for various embedded systems.
Key Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| Series | HCS12X |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 44 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
Key Features
- High Performance Core: The HCS12X core operates at 40MHz, providing robust processing capabilities.
- Advanced Peripherals: Includes CANbus, SCI, SPI, LVD, POR, PWM, and WDT, enhancing the device's functionality and versatility.
- Memory and Storage: Features 256KB of FLASH program memory and 12KB of RAM, suitable for complex applications.
- Analog to Digital Conversion: Equipped with an 8x12-bit A/D converter for precise analog data processing.
- Wide Operating Voltage Range: Supports a supply voltage range of 1.72V to 5.5V, making it adaptable to various power conditions.
- Robust Operating Temperature Range: Operates from -40°C to 125°C, suitable for harsh environmental conditions.
Applications
- Automotive Systems: Ideal for automotive control units, engine management systems, and other vehicle electronics due to its robust performance and wide operating temperature range.
- Industrial Control Systems: Suitable for industrial automation, motor control, and other industrial applications requiring reliable and high-performance microcontrollers.
- Consumer Electronics: Can be used in various consumer electronic devices such as home appliances, medical devices, and other embedded systems.
- Aerospace and Defense: Its high reliability and wide operating temperature range make it a candidate for aerospace and defense applications.
Q & A
- What is the core processor of the S9S12XS256J0MAE,557 microcontroller?
The core processor is the HCS12X.
- What is the maximum operating speed of the S9S12XS256J0MAE,557?
The maximum operating speed is 40MHz.
- How much program memory does the S9S12XS256J0MAE,557 have?
The device has 256KB (256K x 8) of FLASH program memory.
- What are the primary peripherals included in the S9S12XS256J0MAE,557?
The primary peripherals include LVD, POR, PWM, and WDT.
- What is the operating temperature range of the S9S12XS256J0MAE,557?
The operating temperature range is -40°C to 125°C.
- What type of package does the S9S12XS256J0MAE,557 come in?
The device is packaged in a 64-LQFP (10x10) surface mount package.
- Is the S9S12XS256J0MAE,557 RoHS compliant?
Yes, the S9S12XS256J0MAE,557 is RoHS compliant and lead-free.
- What are the available communication interfaces on the S9S12XS256J0MAE,557?
The available communication interfaces include CANbus, SCI, and SPI.
- How much RAM does the S9S12XS256J0MAE,557 have?
The device has 12KB of RAM.
- What is the supply voltage range for the S9S12XS256J0MAE,557?
The supply voltage range is 1.72V to 5.5V.
