Overview
The S912XHY128F0VLLR is a 16-bit microcontroller (MCU) from NXP USA Inc., part of the MC9S12XHY family. This MCU is designed with a focus on low cost and high performance, making it an ideal choice for various automotive applications. It features a robust set of peripherals and a powerful S12 core, ensuring reliable operation in demanding environments.
Key Specifications
| Parameter | Value |
|---|---|
| Core Type | S12 16-bit MCU |
| Flash Memory | 128 KB |
| Maximum Frequency | 40 MHz |
| Operating Temperature | -40°C to +105°C |

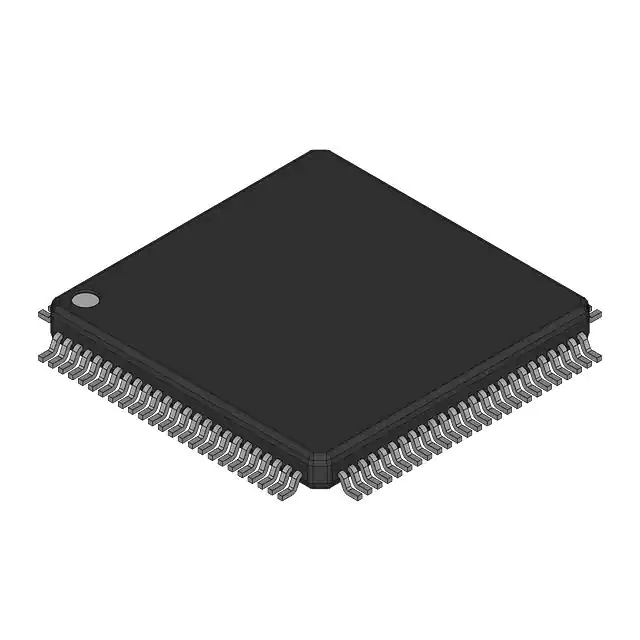

| Package Type | 100-pin LQFP |
| Qualification | Automotive Qualified |
Key Features
- High Performance S12 Core: Provides efficient processing capabilities.
- 128 KB Flash Memory: Ample storage for code and data.
- Automotive Qualification: Meets stringent automotive standards for reliability and durability.
- Wide Operating Temperature Range: Operates reliably from -40°C to +105°C.
- Robust Peripherals: Includes various peripherals to support diverse application needs.
Applications
The S912XHY128F0VLLR is primarily targeted at the automotive sector, suitable for applications such as engine control units, transmission control units, body control modules, and other automotive electronic control systems. Its robust design and automotive qualification make it a reliable choice for these demanding environments.
Q & A
- What is the core type of the S912XHY128F0VLLR MCU?
The S912XHY128F0VLLR features an S12 16-bit MCU core. - How much flash memory does the S912XHY128F0VLLR have?
The MCU has 128 KB of flash memory. - What is the maximum operating frequency of the S912XHY128F0VLLR?
The maximum operating frequency is 40 MHz. - What is the operating temperature range of the S912XHY128F0VLLR?
The operating temperature range is from -40°C to +105°C. - What type of package does the S912XHY128F0VLLR come in?
The MCU comes in a 100-pin LQFP package. - Is the S912XHY128F0VLLR automotive qualified?
Yes, the S912XHY128F0VLLR is automotive qualified. - What are the primary applications of the S912XHY128F0VLLR?
The primary applications include engine control units, transmission control units, body control modules, and other automotive electronic control systems. - Where can I find detailed specifications and datasheets for the S912XHY128F0VLLR?
Detailed specifications and datasheets can be found on the NXP Semiconductors website, as well as on distributor sites like Mouser and Digi-Key. - What is the minimum order quantity for the S912XHY128F0VLLR?
The minimum order quantity is 1000 units. - What is the lead time for the S912XHY128F0VLLR?
The lead time is typically 12 weeks.
