Overview
The S912XEQ384J3VALR is a 16-bit microcontroller from NXP USA Inc., part of the MC9S12XE Family. This microcontroller builds upon the innovations of the MC9S12XD Family by introducing new features that enhance performance and functionality. It is designed to deliver high-speed processing, advanced analog capabilities, and robust memory options, making it suitable for a wide range of applications in automotive, industrial, and consumer electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 16-bit |
| Flash Memory | 384 KB |

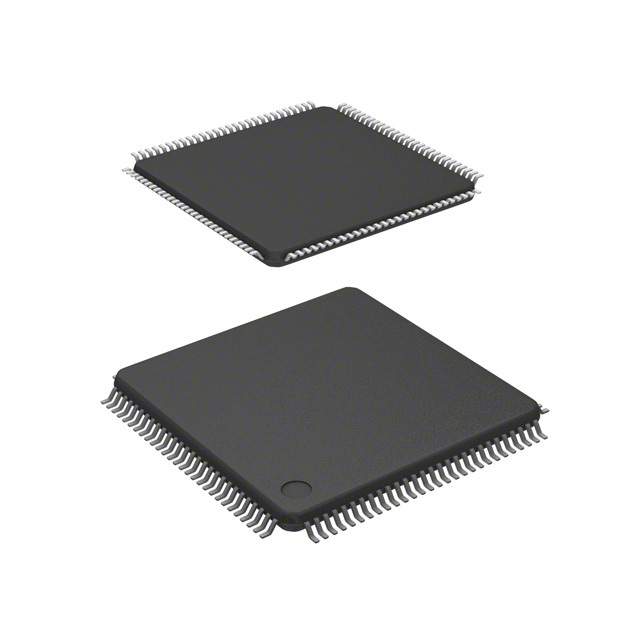

| Package Type | 112-pin LQFP |
| Operating Frequency | Up to 50 MHz |
| Analog-to-Digital Converter (ADC) | Faster ADC with multiple channels |
| Communication Interfaces | UART, SPI, I2C, CAN |
| Temperature Range | -40°C to 125°C |
Key Features
- Frequency-modulated locked loop for stable clock generation
- Faster analog-to-digital converter (ADC) for enhanced analog performance
- Extended flash memory up to 1 MB in the S12XE family
- Multiple communication interfaces including UART, SPI, I2C, and CAN
- Robust temperature range from -40°C to 125°C
Applications
- Automotive systems: Engine control, transmission control, and body electronics
- Industrial control systems: Motor control, power management, and automation
- Consumer electronics: Home appliances, medical devices, and gaming consoles
- IoT devices: Smart home devices, wearables, and industrial IoT applications
Q & A
- What is the flash memory size of the S912XEQ384J3VALR microcontroller?
The flash memory size is 384 KB. - What is the package type of the S912XEQ384J3VALR?
The package type is 112-pin LQFP. - What is the maximum operating frequency of the S912XEQ384J3VALR?
The maximum operating frequency is up to 50 MHz. - Does the S912XEQ384J3VALR have a frequency-modulated locked loop?
Yes, it does. - What are the communication interfaces available on the S912XEQ384J3VALR?
The communication interfaces include UART, SPI, I2C, and CAN. - What is the temperature range of the S912XEQ384J3VALR?
The temperature range is from -40°C to 125°C. - Is the S912XEQ384J3VALR suitable for automotive applications?
Yes, it is suitable for various automotive applications. - Does the S912XEQ384J3VALR support IoT applications?
Yes, it supports IoT applications due to its robust features and interfaces. - Where can I find detailed specifications for the S912XEQ384J3VALR?
You can find detailed specifications on the official NXP website, Digi-Key, Mouser Electronics, and other authorized distributors. - What family does the S912XEQ384J3VALR belong to?
The S912XEQ384J3VALR belongs to the MC9S12XE Family of microcontrollers.
