Overview

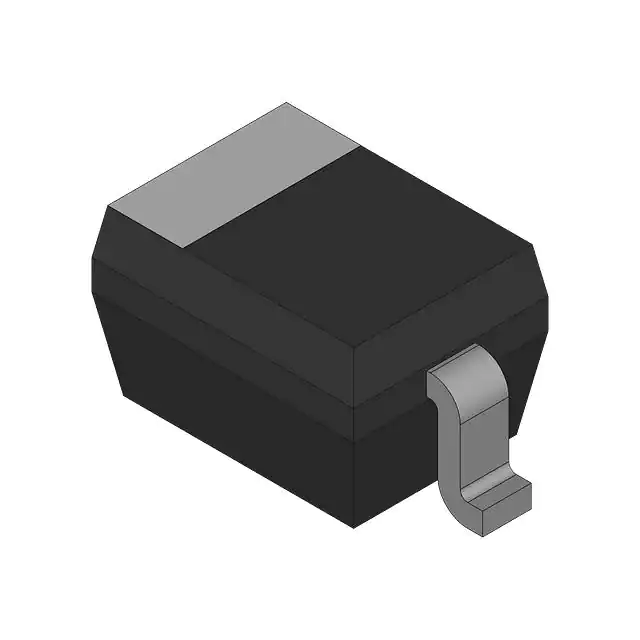

The PDZ6.8B/ZLX is a low-power general purpose Zener diode produced by NXP USA Inc., now part of Nexperia. This component is designed to operate as a voltage regulator and is packaged in a small SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. It is suitable for various applications requiring overvoltage protection, general regulation, and voltage reference functions.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | PDZ6.8B |
| Orderable Part Number | PDZ6.8B/ZLX |
| Package | SOD323 (SC-76) |
| Zener Voltage | 6.8V |
| Power Dissipation | 400 mW |
| Maximum Current | 50 mA |
| Operating Temperature | -65°C to +150°C |
| RoHS Status | RoHS compliant |
Key Features
- Low power consumption, suitable for energy-efficient designs.
- Small SOD323 (SC-76) package, ideal for space-constrained applications.
- Wide operating temperature range from -65°C to +150°C.
- RoHS compliant, ensuring environmental sustainability.
- High reliability and stability in voltage regulation.
Applications
- Overvoltage protection in electronic circuits.
- General voltage regulation and stabilization.
- Voltage reference functions in various electronic systems.
- Automotive and industrial control systems.
- Consumer electronics requiring reliable voltage regulation.
Q & A
- What is the primary function of the PDZ6.8B/ZLX Zener diode?
The primary function is to act as a voltage regulator and provide overvoltage protection. - In what package is the PDZ6.8B/ZLX available?
The PDZ6.8B/ZLX is available in the SOD323 (SC-76) Surface-Mounted Device (SMD) plastic package. - What is the Zener voltage of the PDZ6.8B/ZLX?
The Zener voltage is 6.8V. - What is the maximum power dissipation of the PDZ6.8B/ZLX?
The maximum power dissipation is 400 mW. - Is the PDZ6.8B/ZLX RoHS compliant?
Yes, the PDZ6.8B/ZLX is RoHS compliant. - What is the operating temperature range of the PDZ6.8B/ZLX?
The operating temperature range is from -65°C to +150°C. - What are some common applications of the PDZ6.8B/ZLX?
Common applications include overvoltage protection, general voltage regulation, and voltage reference functions in automotive, industrial, and consumer electronics. - Who is the manufacturer of the PDZ6.8B/ZLX?
The manufacturer is NXP USA Inc., now part of Nexperia. - What is the maximum current rating of the PDZ6.8B/ZLX?
The maximum current rating is 50 mA. - Is the PDZ6.8B/ZLX suitable for high-reliability applications?
Yes, it is designed for high reliability and stability in voltage regulation.
