Overview
The NCX2202GW,125 is a single low-voltage, low-power comparator with an open-drain output, manufactured by NXP USA Inc. This device is designed to operate efficiently in a wide range of supply voltages, making it versatile for various applications. It features a very low supply current and rail-to-rail input/output performance, which enhances its suitability for use in both 3.0 V and 5.0 V systems.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage (VCC) | 1.3 | - | 5.5 | V |
| Input Voltage (VI) | -0.5 | - | VCC + 0.5 | V |
| Output Voltage (VO) | VEE - 0.5 | - | 7.0 | V |
| Supply Current (ICC) | - | 6.0 | 9.0 | μA |
| Propagation Delay (tpd) | - | 0.8 | - | μs |
| Transition Time (tt) | - | 10 | - | ns |
| Maximum Junction Temperature (Tj) | - | - | 150 | °C |
| Storage Temperature (Tstg) | -65 | - | 150 | °C |
| Total Power Dissipation (Ptot) | - | - | 250 | mW |
Key Features
- Wide supply voltage range from 1.3 V to 5.5 V
- Rail-to-rail input/output performance
- Very low supply current of 6 μA (typical)
- Low-power consumption
- No phase inversion with overdriven input signals
- Internal hysteresis
- Propagation delay of 0.8 μs (typical)
- ESD protection
Applications
The NCX2202GW,125 is suitable for a variety of applications where low power consumption and wide supply voltage range are critical. These include battery-powered devices, portable electronics, and systems requiring low-voltage operation. It is also useful in automotive, industrial, and consumer electronics where reliability and low power are essential.
Q & A
- What is the supply voltage range of the NCX2202GW,125? The supply voltage range is from 1.3 V to 5.5 V.
- What is the typical supply current of the NCX2202GW,125? The typical supply current is 6 μA.
- What is the propagation delay of the NCX2202GW,125? The propagation delay is typically 0.8 μs.
- Does the NCX2202GW,125 have ESD protection? Yes, it has ESD protection.
- What is the maximum junction temperature for the NCX2202GW,125? The maximum junction temperature is 150 °C.
- What is the storage temperature range for the NCX2202GW,125? The storage temperature range is from -65 °C to 150 °C.

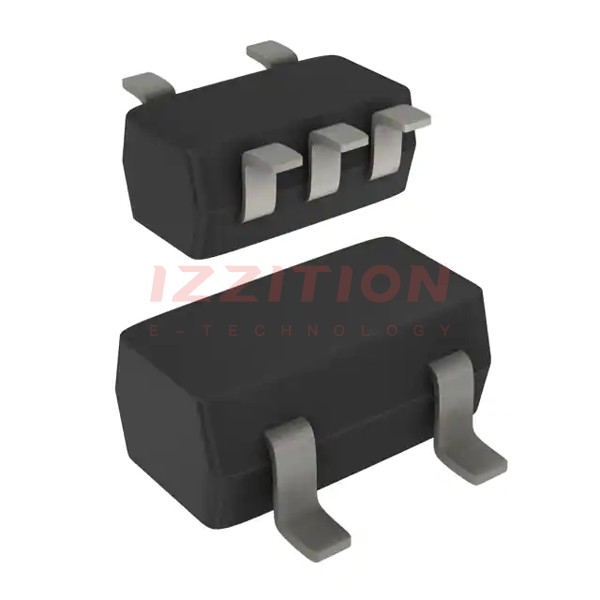

- What package types are available for the NCX2202GW,125? It is available in TSSOP5 and other packages like XSON6.
- Is the NCX2202GW,125 RoHS compliant? Yes, it is RoHS compliant.
- What is the typical transition time for the NCX2202GW,125? The typical transition time is 10 ns.
- Does the NCX2202GW,125 have internal hysteresis? Yes, it has internal hysteresis.
