Overview

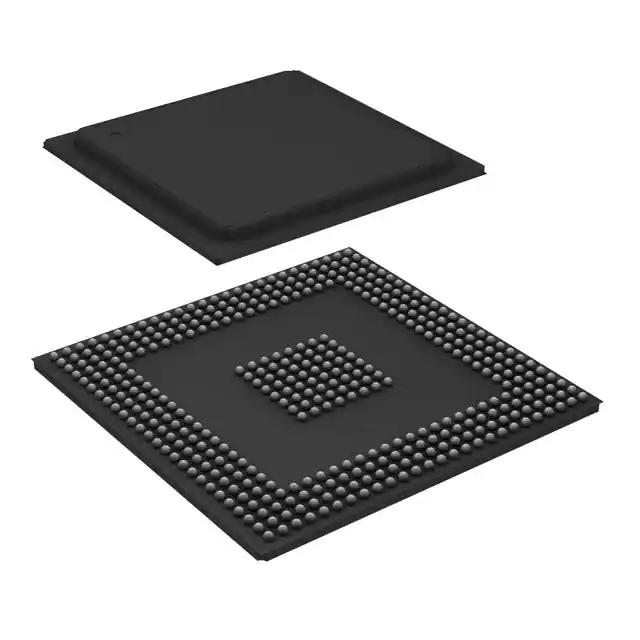

The NXP MPC5553MZP132 is a 32-bit single-core embedded microcontroller that belongs to the MPC55xx Qorivva series. It is based on the PowerPC™ Book E architecture and is designed to provide high performance and advanced features for various applications. This microcontroller is particularly suited for mid-range engine management and industrial use cases that require complex control and processing capabilities.
Key Specifications
| Specification | Details |
|---|---|
| Architecture | PowerPC™ Book E |
| Core Type | 32-bit Single-Core |
| Clock Speed | Up to 80 MHz |
| Memory | 1 MB Flash, 136 KB RAM |
| Interfaces | UART, SPI, CAN, I2C, etc. |
| Operating Voltage | 3.0V to 3.6V |
| Operating Temperature | -40°C to 125°C |
| Package Type | 144-pin LQFP |
Key Features
- High-performance CMOS technology
- Advanced engine control and industrial control capabilities
- Integrated peripherals such as UART, SPI, CAN, and I2C
- EEPROM emulation for endurance and reliability
- Support for complex algorithms and real-time processing
Applications
- Mid-range engine management systems
- Industrial control systems
- Automotive electronics
- Robotics and automation
- Other complex control and processing applications
Q & A
- What is the architecture of the MPC5553MZP132? The MPC5553MZP132 is based on the PowerPC™ Book E architecture.
- What is the maximum clock speed of the MPC5553MZP132? The maximum clock speed is up to 80 MHz.
- How much memory does the MPC5553MZP132 have? It has 1 MB of Flash memory and 136 KB of RAM.
- What are the operating voltage and temperature ranges of the MPC5553MZP132? The operating voltage range is 3.0V to 3.6V, and the operating temperature range is -40°C to 125°C.
- What package type is the MPC5553MZP132 available in? It is available in a 144-pin LQFP package.
- What are some of the integrated peripherals of the MPC5553MZP132? It includes UART, SPI, CAN, and I2C interfaces.
- Is the MPC5553MZP132 suitable for automotive applications? Yes, it is particularly suited for mid-range engine management and other automotive electronics.
- Does the MPC5553MZP132 support EEPROM emulation? Yes, it supports EEPROM emulation for endurance and reliability.
- What are some of the industrial applications of the MPC5553MZP132? It is used in industrial control systems, robotics, and automation.
- Where can I find design files and calculators for the MPC5553MZP132? Design files and calculators can be found on the NXP Semiconductors website.
