Overview

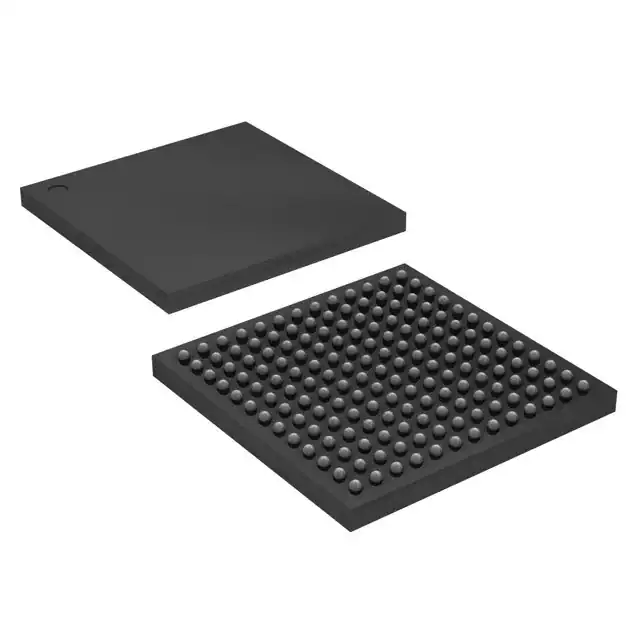

The MK65FN2M0CAC18R is a high-performance microcontroller from NXP USA Inc., part of the Kinetis K65 series. This device is built on the Arm Cortex-M4F core, operating at a maximum clock frequency of 180 MHz. It is designed to meet the demands of applications requiring advanced security, encryption, and high-speed connectivity. The microcontroller features 2MB of flash memory and 256kB of SRAM, making it suitable for a wide range of embedded systems.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4F |
| Maximum Clock Frequency | 180 MHz |
| Program Memory Size | 2MB (2M x 8) FLASH |
| RAM Size | 256 kB |
| Supply Voltage | 1.71 V ~ 3.6 V |
| Number of I/Os | 116 |
| Package Type | 169-WLCSP (5.5x5.63) |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT |
| Connectivity | CAN, EBI/EMI, Ethernet, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
Key Features
- High-performance Arm Cortex-M4F core with a maximum clock frequency of 180 MHz.
- 2MB of flash memory and 256kB of SRAM.
- Dual high-speed and full-speed USBs.
- Advanced security features including anti-tamper mechanisms.
- Comprehensive set of peripherals including DMA, I²S, LVD, POR, PWM, and WDT.
- Support for various communication protocols such as CAN, Ethernet, I²C, SPI, UART/USART, and USB.
Applications
The MK65FN2M0CAC18R microcontroller is optimized for applications that require high performance, advanced security, and robust connectivity. Typical use cases include:
- Industrial automation and control systems.
- Medical devices requiring high precision and reliability.
- Automotive systems, especially those needing advanced security features.
- Internet of Things (IoT) devices that require secure data transmission and processing.
- Consumer electronics that demand high-speed data transfer and advanced user interfaces.
Q & A
- What is the core processor of the MK65FN2M0CAC18R microcontroller?
The core processor is the ARM® Cortex®-M4F. - What is the maximum clock frequency of the MK65FN2M0CAC18R?
The maximum clock frequency is 180 MHz. - How much flash memory does the MK65FN2M0CAC18R have?
The microcontroller has 2MB of flash memory. - What is the RAM size of the MK65FN2M0CAC18R?
The RAM size is 256 kB. - What is the supply voltage range for the MK65FN2M0CAC18R?
The supply voltage range is 1.71 V ~ 3.6 V. - What type of package does the MK65FN2M0CAC18R come in?
The microcontroller comes in a 169-WLCSP (5.5x5.63) package. - What are some of the key peripherals supported by the MK65FN2M0CAC18R?
The key peripherals include DMA, I²S, LVD, POR, PWM, and WDT. - Does the MK65FN2M0CAC18R support Ethernet connectivity?
Yes, it supports Ethernet connectivity along with other protocols like CAN, I²C, SPI, UART/USART, and USB. - What are some typical applications for the MK65FN2M0CAC18R?
Typical applications include industrial automation, medical devices, automotive systems, IoT devices, and consumer electronics. - What are the operating temperature ranges for the MK65FN2M0CAC18R?
The operating temperature range is -40°C ~ 105°C (TA).
