Overview
The MK10DX256VMD10 is a microcontroller from NXP USA Inc., part of the Kinetis K10 family. This device is built around the ARM Cortex-M4 core, operating at up to 100 MHz and featuring advanced analog integration and serial communication capabilities. It is designed to meet a broad range of processing bandwidth needs, making it suitable for various applications requiring precision, low power consumption, and high reliability.
Key Specifications
| Specification | Description |
|---|---|
| Core | ARM Cortex-M4, up to 100 MHz |
| Flash Memory | Up to 256 KB program flash memory |
| RAM | Up to 128 KB RAM |
| Supply Voltage Range | 1.71 V to 3.6 V |
| Operating Temperature Range | -40°C to 105°C |

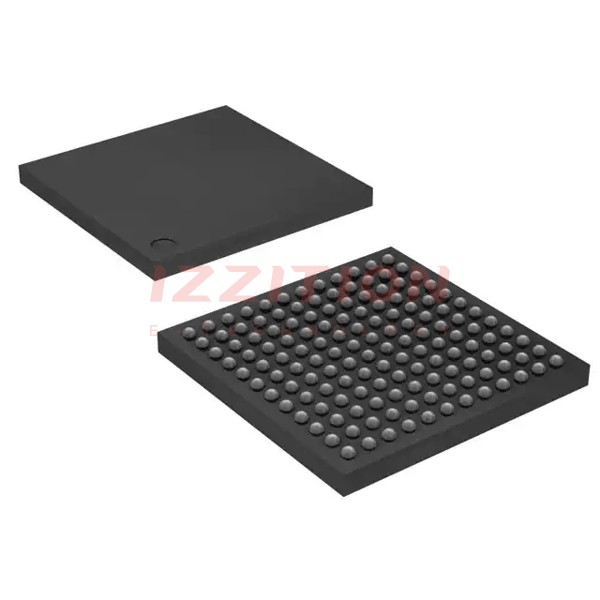

| Package Type | 144-MAPBGA |
| Analog Modules | Two 16-bit SAR ADCs, two 12-bit DACs, three analog comparators, programmable gain amplifier (PGA) |
| Communication Interfaces | Two CAN modules, three SPI modules, two I2C modules, six UART modules, SDHC, I2S module |
| Timers | Programmable delay block, eight-channel motor control/general purpose/PWM timer, two 2-channel quadrature decoder/general purpose timers, periodic interrupt timers, 16-bit low-power timer |
Key Features
- High-precision analog integration with two 16-bit SAR ADCs, two 12-bit DACs, and three analog comparators.
- Advanced serial communication capabilities including CAN, SPI, I2C, UART, SDHC, and I2S modules.
- Multiple low-power modes for power optimization.
- Memory protection unit with multi-master protection and 16-channel DMA controller.
- Hardware CRC module and 128-bit unique identification (ID) number per chip.
- Low-power hardware touch sensor interface (TSI) and general-purpose input/output.
Applications
- Embedded control systems requiring precision and low power consumption.
- Electronic Point of Sale (EPOS) systems.
- Flow meters and other industrial measurement devices.
- Gaming controllers and other consumer electronics.
- Automotive and industrial automation systems.
Q & A
- What is the core type and maximum frequency of the MK10DX256VMD10?
The MK10DX256VMD10 features an ARM Cortex-M4 core operating at up to 100 MHz.
- What is the flash memory capacity of the MK10DX256VMD10?
The device has up to 256 KB of program flash memory.
- What is the operating temperature range of the MK10DX256VMD10?
The operating temperature range is -40°C to 105°C.
- What types of analog modules are included in the MK10DX256VMD10?
The device includes two 16-bit SAR ADCs, two 12-bit DACs, three analog comparators, and a programmable gain amplifier (PGA).
- What communication interfaces are available on the MK10DX256VMD10?
The device supports CAN, SPI, I2C, UART, SDHC, and I2S modules.
- Does the MK10DX256VMD10 have any power-saving features?
Yes, it includes multiple low-power modes for power optimization.
- What kind of memory protection does the MK10DX256VMD10 offer?
The device features a memory protection unit with multi-master protection and a 16-channel DMA controller.
- Is the MK10DX256VMD10 suitable for industrial applications?
Yes, it is suitable for various industrial applications due to its high reliability and advanced features.
- What is the package type of the MK10DX256VMD10?
The device is packaged in a 144-MAPBGA.
- Does the MK10DX256VMD10 support touch sensor interfaces?
Yes, it includes a low-power hardware touch sensor interface (TSI).
