Overview
The MIMXRT1176DVMAA is a high-performance crossover microcontroller (MCU) from NXP USA Inc., part of the i.MX RT1170 family. This MCU features dual-core architecture with an Arm® Cortex®-M7 core operating at up to 1 GHz and an Arm® Cortex®-M4 core operating at up to 400 MHz. It is designed to provide optimized computing power and multiple media capabilities, making it suitable for a wide range of applications including automotive, industrial, and IoT sectors.
Key Specifications
| Family Name | i.MX RT |
|---|---|
| Core Processor | ARM Cortex M7, ARM Cortex M4 |
| Program Memory Type | ROM |
| RAM Size | 2 MB |
| No of I/O Lines | 174 |
| Interface Type / Connectivity | CAN, Ethernet, I2C, I2S, SPI, UART, USB |
| Supply Voltage | 1.1V to 1.15V |
| Operating Temperature | 0°C to 95°C |
| On-Chip ADC | 2-ch x 12-bit |

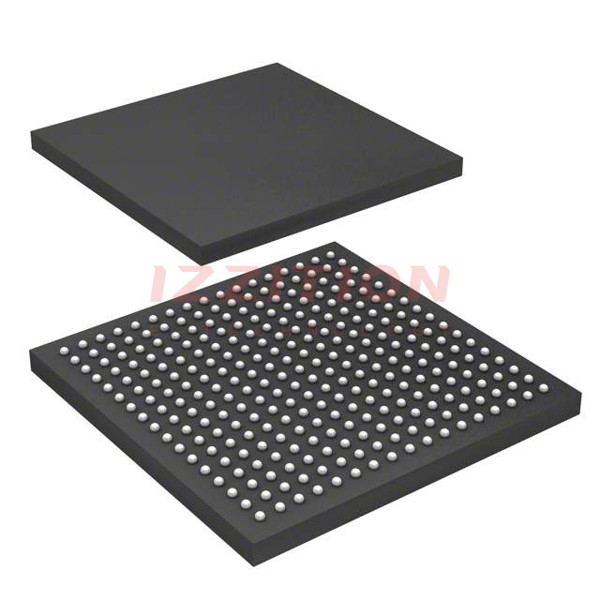

| Package Style | MAPBGA-289 |
| Mounting Method | Surface Mount |
Key Features
- Dual-core architecture with Arm® Cortex®-M7 and Arm® Cortex®-M4 cores for real-time microcontroller performance.
- High-speed operation: Cortex-M7 up to 1 GHz and Cortex-M4 up to 400 MHz.
- 2 MB on-chip RAM and various memory interfaces.
- Advanced connectivity options including 3x Ethernet up to Gbps with TSN/AVB, UART, SPI, I²C, USB, and 3x CAN FD.
- Integrated secure boot and crypto engines for enhanced security.
- Part of the EdgeLock Assurance program, following NXP's security-by-design approach.
- Supported by the MCUXpresso ecosystem for rapid development.
Applications
- Automotive: Used in auto-safety systems, engine and vehicle-performance monitoring systems, and engine control modules.
- Industrial: Suitable for industrial automation, control systems, and IoT applications.
- IoT: Ideal for IoT devices requiring high performance and advanced connectivity.
- Medical Equipment: Can be used in medical devices such as X-ray machines, ECG machines, and imaging systems.
- Home Automation: Used in automated lighting systems, thermostats, HVAC systems, and energy-management systems.
- Smart Electronics: Found in consumer electronic devices like smartphones, TVs, gaming consoles, and home appliances.
Q & A
- What is the MIMXRT1176DVMAA?
The MIMXRT1176DVMAA is a crossover microcontroller from NXP USA Inc., part of the i.MX RT1170 family, featuring dual-core architecture with Arm® Cortex®-M7 and Arm® Cortex®-M4 cores.
- What are the operating frequencies of the Cortex-M7 and Cortex-M4 cores?
The Cortex-M7 core operates up to 1 GHz, and the Cortex-M4 core operates up to 400 MHz.
- How much on-chip RAM does the MIMXRT1176DVMAA have?
The MIMXRT1176DVMAA has 2 MB of on-chip RAM.
- What types of interfaces does the MIMXRT1176DVMAA support?
The MCU supports various interfaces including CAN, Ethernet, I2C, I2S, SPI, UART, and USB.
- What is the package style and mounting method of the MIMXRT1176DVMAA?
The package style is MAPBGA-289, and the mounting method is surface mount.
- What are some of the key security features of the MIMXRT1176DVMAA?
The MCU includes integrated secure boot and crypto engines and is part of the EdgeLock Assurance program.
- What ecosystem supports the MIMXRT1176DVMAA for development?
The MCU is supported by the MCUXpresso ecosystem, which includes an SDK, IDEs, and secure provisioning and configuration tools.
- In what temperature range can the MIMXRT1176DVMAA operate?
The operating temperature range is from 0°C to 95°C.
- What is the supply voltage range for the MIMXRT1176DVMAA?
The supply voltage range is from 1.1V to 1.15V.
- What are some common applications of the MIMXRT1176DVMAA?
Common applications include automotive, industrial, IoT, medical equipment, home automation, and smart electronics.
