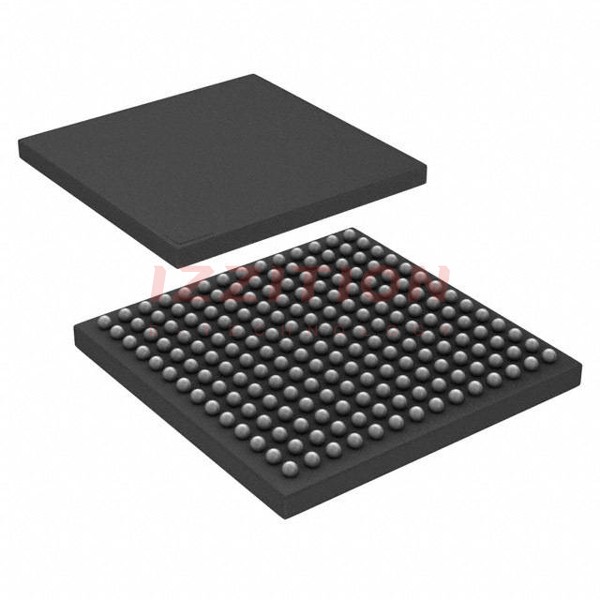

MIMX8DX5AVLFZAC
  • Share:

NXP USA Inc. MIMX8DX5AVLFZAC

Manufacturer No:
MIMX8DX5AVLFZAC
Manufacturer:
NXP USA Inc.
Package:
Tray
Description:
I.MX 8DUALXPLUS 21X21
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MIMX8DX5AVLFZAC is a high-performance microprocessor developed by NXP USA Inc., designed to support a wide range of applications including industrial automation, home automation, IoT devices, and smart appliances. This System on Chip (SoC) integrates advanced processing capabilities, low energy consumption, and fast connectivity features, making it a versatile solution for modern, data-driven applications.

Key Specifications

Parameter Value
Processor Type Quad-core Arm Cortex-A35
Processor Speed Up to 1.2 GHz
Microcontroller Cortex-M4F for real-time processing
GPU Vivante GC7000Lite
Display Support Up to 3 independent displays (2× MIPI or LVDS + 1× Parallel)
Memory Interface LPDDR4 (no ECC) @1200 MHz, RAW/ONFI 3.2 NAND Flash
Package Type FCPBGA-1296
Package Dimensions 21 mm X 21 mm, 0.8 mm pitch
Temperature Grade Automotive
Interfaces PCIe 3.0 (1 lane), USB 3.0, 10/100/1000M Ethernet, Wi-Fi, Bluetooth

Key Features

  • Efficient Power Usage: Reduces energy consumption without compromising performance.
  • Multiple Display Support: Facilitates connection to multiple displays for an enhanced user experience.
  • High-Speed Interfaces: Supports fast data transfer between the microprocessor and external devices.
  • Integrated Multimedia Solutions: Enables seamless integration of audio, video, and graphics processing.
  • Advanced Connectivity Options: Offers various connectivity features like Wi-Fi, Bluetooth, or Ethernet for communication with other devices.

Applications

The MIMX8DX5AVLFZAC is designed for a variety of applications, including:

  • Industrial automation
  • Home automation
  • IoT devices
  • Smart appliances
  • Robotics
  • Automotive infotainment systems
  • AR/VR devices
  • Security systems
  • Medical devices

Q & A

  1. Q: What is the processor type of the MIMX8DX5AVLFZAC?

    A: The MIMX8DX5AVLFZAC features a quad-core Arm Cortex-A35 processor.

  2. Q: What is the maximum processor speed of the MIMX8DX5AVLFZAC?

    A: The processor speed can go up to 1.2 GHz.

  3. Q: Does the MIMX8DX5AVLFZAC include a microcontroller for real-time processing?

    A: Yes, it includes a Cortex-M4F microcontroller for real-time processing tasks.

  4. Q: What type of GPU is integrated into the MIMX8DX5AVLFZAC?

    A: The MIMX8DX5AVLFZAC integrates a Vivante GC7000Lite GPU.

  5. Q: How many independent displays can the MIMX8DX5AVLFZAC support?

    A: It can support up to 3 independent displays (2× MIPI or LVDS + 1× Parallel).

  6. Q: What types of memory interfaces does the MIMX8DX5AVLFZAC support?

    A: It supports LPDDR4 (no ECC) @1200 MHz and RAW/ONFI 3.2 NAND Flash.

  7. Q: What is the package type and dimensions of the MIMX8DX5AVLFZAC?

    A: The package type is FCPBGA-1296, with dimensions of 21 mm X 21 mm and a 0.8 mm pitch.

  8. Q: What are the key applications of the MIMX8DX5AVLFZAC?

    A: Key applications include industrial automation, home automation, IoT devices, smart appliances, robotics, automotive infotainment systems, AR/VR devices, security systems, and medical devices.

  9. Q: What is the warranty period for the MIMX8DX5AVLFZAC?

    A: Ovaga Technologies offers a 1-year warranty on the MIMX8DX5AVLFZAC.

  10. Q: How does Ovaga ensure the authenticity of the MIMX8DX5AVLFZAC?

    A: Ovaga rigorously tests and verifies the credentials of original NXP manufacturers and authorized agents to ensure authenticity.

Product Attributes

Core Processor:-
Number of Cores/Bus Width:-
Speed:-
Co-Processors/DSP:-
RAM Controllers:-
Graphics Acceleration:-
Display & Interface Controllers:-
Ethernet:-
SATA:-
USB:-
Voltage - I/O:-
Operating Temperature:-
Security Features:-
Package / Case:-
Supplier Device Package:-
0 Remaining View Similar

In Stock

$100.40
2

Please send RFQ , we will respond immediately.
