MCIMX6G2DVK05AA-NXP
  • Share:

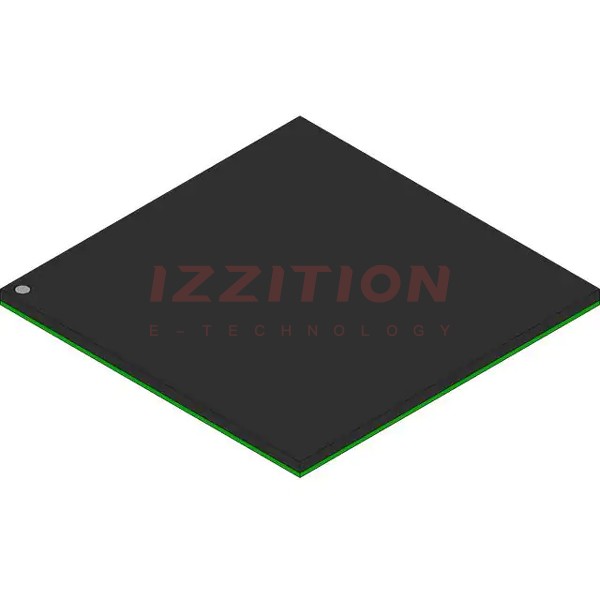

NXP USA Inc. MCIMX6G2DVK05AA-NXP

Manufacturer No:
MCIMX6G2DVK05AA-NXP
Manufacturer:
NXP USA Inc.
Package:
Bulk
Description:
I.MX 32 BIT MPU, ARM CORTEX-A7 C
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The MCIMX6G2DVK05AA is a microprocessor unit (MPU) developed by NXP USA Inc., part of the i.MX 6UltraLite family. This RISC-based CPU is designed for fast processing in a small form factor, making it ideal for applications requiring low power consumption and high performance. The processor is built on the ARM Cortex-A7 architecture, ensuring efficient and reliable operation in various embedded systems.

Key Specifications

SpecificationDetails
Number of Cores1 Core
Data Bus Width32 bit
Maximum Clock Frequency528 MHz
Package / CaseLFBGA-272 (9 mm x 9 mm x 1.11 mm body, 0.5 mm pitch)
Operating Voltage1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature0°C – 95°C
External Memory SupportedDDR3 SDRAM, DDR3L SDRAM, LPDDR2 DRAM

Key Features

  • Low Power Consumption: Designed to extend battery life in portable and battery-powered devices.
  • High Performance: Utilizes the ARM Cortex-A7 core for efficient processing.
  • Compact Form Factor: LFBGA-272 package with a small footprint, ideal for space-constrained designs.
  • Flexible Memory Options: Supports various types of external memory including DDR3 SDRAM, DDR3L SDRAM, and LPDDR2 DRAM.

Applications

The MCIMX6G2DVK05AA is suitable for a wide range of applications, including:

  • Industrial Automation: For control systems and IoT devices.
  • Consumer Electronics: Such as smart home devices, wearables, and handheld devices.
  • Medical Devices: For portable medical equipment and diagnostic tools.
  • Automotive Systems: For infotainment and telematics systems.

Q & A

  1. What is the maximum clock frequency of the MCIMX6G2DVK05AA?
    The maximum clock frequency is 528 MHz.
  2. What type of core does the MCIMX6G2DVK05AA use?
    The processor uses an ARM Cortex-A7 core.
  3. What is the package type of the MCIMX6G2DVK05AA?
    The package type is LFBGA-272.
  4. What are the supported operating voltages for the MCIMX6G2DVK05AA?
    The supported operating voltages are 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, and 3.3V.
  5. What is the operating temperature range for the MCIMX6G2DVK05AA?
    The operating temperature range is 0°C – 95°C.
  6. What types of external memory does the MCIMX6G2DVK05AA support?
    The processor supports DDR3 SDRAM, DDR3L SDRAM, and LPDDR2 DRAM.
  7. Is the MCIMX6G2DVK05AA suitable for industrial automation applications?
    Yes, it is suitable for industrial automation applications due to its low power consumption and high performance.
  8. Can the MCIMX6G2DVK05AA be used in medical devices?
    Yes, it can be used in medical devices, especially those requiring low power and compact design.
  9. What are some consumer electronics applications for the MCIMX6G2DVK05AA?
    It can be used in smart home devices, wearables, and handheld devices.
  10. Is the MCIMX6G2DVK05AA used in automotive systems?
    Yes, it can be used in infotainment and telematics systems in automotive applications.

Product Attributes

Core Processor:ARM® Cortex®-A7
Number of Cores/Bus Width:1 Core, 32-Bit
Speed:528MHz
Co-Processors/DSP:Multimedia; NEON™ SIMD
RAM Controllers:LPDDR2, DDR3, DDR3L
Graphics Acceleration:No
Display & Interface Controllers:LCD, LVDS
Ethernet:10/100Mbps (1)
SATA:-
USB:USB 2.0 + PHY (1)
Voltage - I/O:1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature:0°C ~ 95°C (TJ)
Security Features:ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS
Package / Case:272-LFBGA
Supplier Device Package:272-MAPBGA (9x9)
0 Remaining View Similar

In Stock

$10.89
54

Please send RFQ , we will respond immediately.
