Overview
The MC9S08SH32CTLR,518 is an 8-bit microcontroller from NXP USA Inc., part of the S08 series. This microcontroller is designed to operate in the 5-volt range, making it suitable for a variety of low-end applications. It features a robust set of peripherals and communication interfaces, making it versatile for use in various embedded systems.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Series | S08 |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

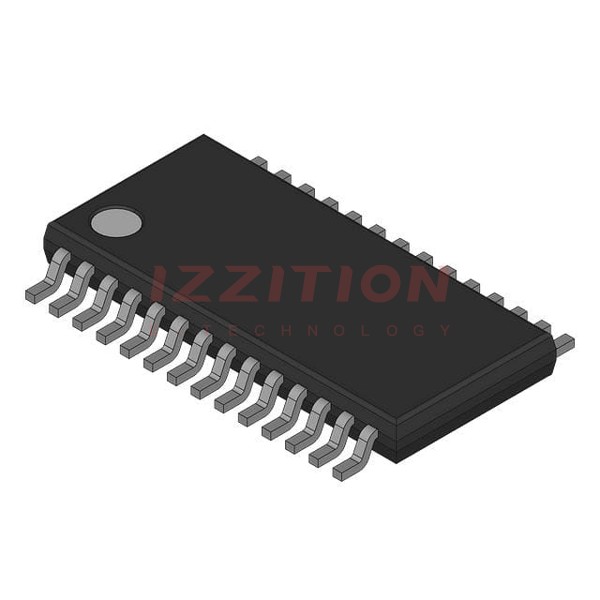

| Package / Case | 28-TSSOP (0.173" | 4.40mm Width) |
Key Features
- S08 Core Processor: Utilizes the S08 core with an HC08 instruction set and support for up to 32 interrupt/reset sources.
- Memory: Features 32KB of FLASH memory and 1KB of RAM, with security circuitry to prevent unauthorized access.
- Communication Interfaces: Includes I²C, LINbus, SCI, and SPI interfaces for versatile communication options.
- Peripherals: Equipped with Low Voltage Detect (LVD), Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT).
- Power-Saving Modes: Offers two very low power stop modes and a reduced power wait mode to optimize energy consumption.
- Input/Output: Provides 23 general-purpose I/O pins and 1 output-only pin, with configurable pull-up devices and slew rate on all input pins.
- Operating Temperature Range: Operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
Applications
The MC9S08SH32CTLR,518 microcontroller is suitable for a wide range of applications, including:
- Automotive Systems: Ideal for body electronics, dashboard controls, and other automotive applications due to its robust peripherals and communication interfaces.
- Industrial Control Systems: Can be used in industrial automation, motor control, and other industrial applications requiring reliable and efficient microcontrollers.
- Consumer Electronics: Suitable for use in handheld devices, battery-powered devices, and other consumer electronics that require low power consumption and versatile functionality.
- Medical Devices: Can be applied in medical devices that require precise control and reliable operation, such as medical sensors and diagnostic equipment.
Q & A
- What is the core processor of the MC9S08SH32CTLR,518 microcontroller?
The core processor is the S08 core with an HC08 instruction set.
- What is the maximum clock frequency of this microcontroller?
The maximum clock frequency is 40 MHz.
- What types of communication interfaces does this microcontroller support?
It supports I²C, LINbus, SCI, and SPI interfaces.
- What is the program memory size and type of this microcontroller?
The program memory size is 32KB, and the type is FLASH.
- What is the operating temperature range of the MC9S08SH32CTLR,518?
The operating temperature range is -40°C to 85°C.
- What are the power-saving modes available in this microcontroller?
It offers two very low power stop modes and a reduced power wait mode.
- How many general-purpose I/O pins does this microcontroller have?
It has 23 general-purpose I/O pins and 1 output-only pin.
- What types of peripherals are included in this microcontroller?
It includes LVD, POR, PWM, and WDT peripherals.
- What is the package type of the MC9S08SH32CTLR,518 microcontroller?
The package type is 28-TSSOP (0.173" | 4.40mm Width).
- What is the voltage supply range for this microcontroller?
The voltage supply range is 2.7V to 5.5V.
