Overview
The MC7448THX1267ND is a high-performance microprocessor from NXP USA Inc., part of the MPC74xx series. This processor is based on the PowerPC G4 architecture, designed to deliver robust processing capabilities with enhanced power management. It operates at a frequency of 1.267 GHz and features a single core with a 32-bit bus width. The processor includes a full megabyte of L2 cache, which significantly enhances its performance and efficiency.
Key Specifications
| Series | MPC74xx |
|---|---|
| Part Status | Active |
| Core Processor | PowerPC G4 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 1.267 GHz |
| Co-Processors/DSP | Multimedia; SIMD |
| Graphics Acceleration | No |
| Voltage - I/O | 1.5V, 1.8V, 2.5V |
| Operating Temperature | -40°C ~ 105°C (TA) |

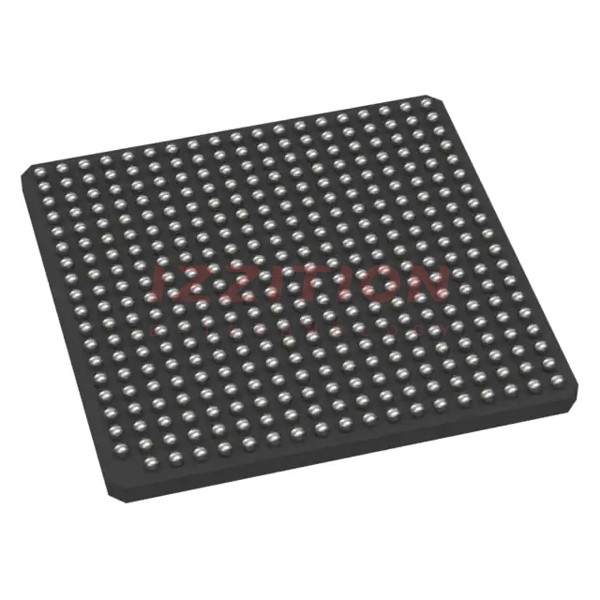

| Package / Case | 360-BCBGA, FCCBGA |
| Supplier Device Package | 360-FCCBGA (25x25) |
| Embedded Interface Type | JTAG |
| L2 Cache | 1 MB |
Key Features
- High-Performance Processing: The MC7448THX1267ND operates at 1.267 GHz, providing high computational power for demanding applications.
- Power Management: Enhanced power management features help in optimizing power consumption, making it suitable for a variety of applications.
- L2 Cache: A full megabyte of L2 cache enhances the processor's performance by reducing the time it takes to access data.
- Multimedia and SIMD Support: Includes multimedia and SIMD (Single Instruction, Multiple Data) co-processors, which are beneficial for multimedia and parallel processing tasks.
- Wide Operating Temperature Range: Operates within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
Applications
- Industrial Automation: The high performance and robustness of the MC7448THX1267ND make it suitable for industrial automation systems that require reliable and powerful processing.
- Aerospace and Defense: Its ability to operate in harsh environments and its high computational capabilities make it a good fit for aerospace and defense applications.
- Embedded Systems: The processor is often used in various embedded systems that require high processing power and efficient power management.
- Networking and Communications: It can be used in networking and communication devices due to its high performance and support for various interfaces.
Q & A
- What is the core architecture of the MC7448THX1267ND?
The MC7448THX1267ND is based on the PowerPC G4 architecture.
- What is the operating frequency of the MC7448THX1267ND?
The operating frequency is 1.267 GHz.
- How much L2 cache does the MC7448THX1267ND have?
The processor includes a full megabyte (1 MB) of L2 cache.
- What is the package type of the MC7448THX1267ND?
The package type is 360-FCCBGA (25x25).
- What are the supported voltage levels for the MC7448THX1267ND?
The supported voltage levels are 1.5V, 1.8V, and 2.5V.
- What is the operating temperature range of the MC7448THX1267ND?
The operating temperature range is -40°C to 105°C.
- Does the MC7448THX1267ND support graphics acceleration?
No, it does not support graphics acceleration.
- What type of embedded interface does the MC7448THX1267ND support?
The processor supports JTAG (Joint Test Action Group) interface.
- What are some common applications of the MC7448THX1267ND?
Common applications include industrial automation, aerospace and defense, embedded systems, and networking and communications.
- Is the MC7448THX1267ND suitable for harsh environments?
Yes, it is suitable for harsh environments due to its wide operating temperature range.
