Overview
The MC56F84442VLHR is a high-speed digital signal controller (DSC) produced by NXP USA Inc. This device is part of the MC56F84xxx family, which is renowned for its exceptional precision, sensing, and control capabilities. The MC56F84442VLHR is based on the 32-bit 56800EX/EF core, making it highly efficient for digital power conversion and advanced motor control applications.
Key Specifications
| Parameter | Value |
|---|---|
| Core | 32-bit 56800EX/EF Core |
| Flash Memory | 64 KB |

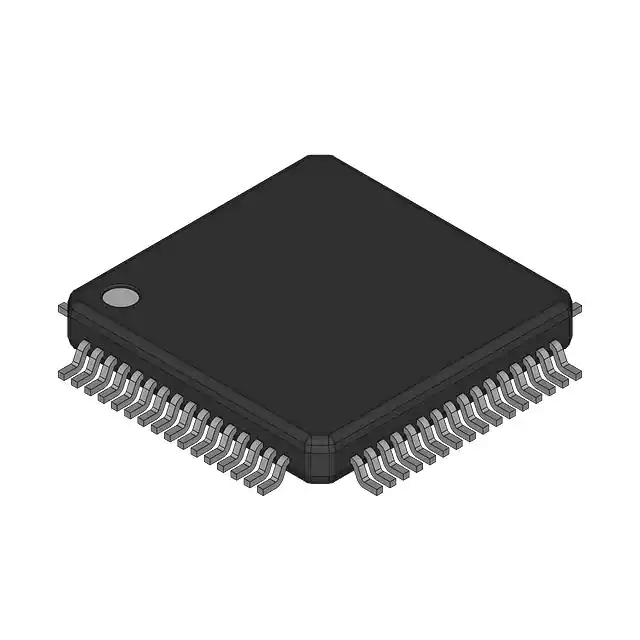

| Package Type | 64LQFP |
| Operating Voltage | 3.0 V to 5.5 V |
| Operating Temperature | -40°C to 125°C |
| Peripherals | High-speed and high-accuracy peripherals, USB FS OTG, CAN FD |
| RoHS Status | RoHS Compliant |
Key Features
- High-speed digital signal processing with 32-bit 56800EX/EF core.
- Exceptional precision, sensing, and control for efficient digital power conversion and advanced motor control.
- Integrated high-speed and high-accuracy peripherals.
- USB FS OTG and CAN FD support for enhanced communication capabilities.
- RoHS compliant, ensuring environmental sustainability.
Applications
- Digital power conversion systems.
- Advanced motor control systems.
- Industrial automation and control systems.
- Medical devices requiring precise signal processing.
- Aerospace and defense applications where high reliability is crucial.
Q & A
- What is the core architecture of the MC56F84442VLHR?
The MC56F84442VLHR is based on the 32-bit 56800EX/EF core. - How much flash memory does the MC56F84442VLHR have?
The device has 64 KB of flash memory. - What is the package type of the MC56F84442VLHR?
The package type is 64LQFP. - What are the operating voltage and temperature ranges for the MC56F84442VLHR?
The operating voltage range is 3.0 V to 5.5 V, and the operating temperature range is -40°C to 125°C. - Does the MC56F84442VLHR support USB and CAN interfaces?
Yes, it supports USB FS OTG and CAN FD.
Yes, it is RoHS compliant.- What are some typical applications of the MC56F84442VLHR?
Typical applications include digital power conversion, advanced motor control, industrial automation, medical devices, and aerospace and defense systems. - Where can I find detailed documentation for the MC56F84442VLHR?
Detailed documentation can be found on the NXP website, including datasheets, design files, and software resources. - Can I use the MC56F84442VLHR in high-reliability environments?
Yes, the device is suitable for high-reliability environments due to its robust design and high-accuracy peripherals. - How does the MC56F84442VLHR contribute to environmental sustainability?
The device is RoHS compliant, which ensures it meets environmental sustainability standards.
