Overview

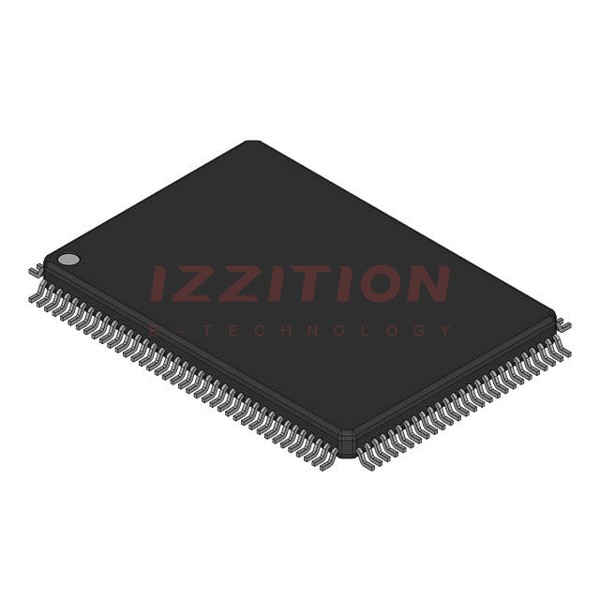

The MC56F8365MFGE is a 16-bit Digital Signal Controller (DSC) produced by NXP USA Inc. This device is part of the 56800E core family, which is based on a Harvard-style architecture. It is designed to support a wide range of applications, particularly in motor control, lighting, and automation. The controller features a robust set of peripherals and a highly efficient instruction set, making it suitable for both DSP and control code development.
Key Specifications
| Parameter | Value |
|---|---|
| Program Flash | 512 KB |
| Data Flash | 32 KB |
| Program RAM | 4 KB |
| Data RAM | 32 KB |
| Boot Flash | 32 KB |
| Number of I/Os | Up to 49 |
| Number of Timers/Counters | 4 |
| Operating Frequency [Max] | 60 MHz |
| Analog-to-Digital Converters (ADCs) | Four 12-bit ADCs |
| Pulse Width Modulator (PWM) Modules | Two modules with 12 PWM outputs |
| Quadrature Decoders | Two four-input Quadrature Decoders |
| Temperature Sensor | Can be connected to any ADC input |
| On-Chip Regulator | Optional |
Key Features
- 16-bit 56800E core with Harvard-style architecture, allowing up to six operations per instruction cycle.
- Support for program execution from internal memories.
- Two external dedicated interrupt lines and up to 49 General Purpose Input/Output (GPIO) lines.
- Two Pulse Width Modulator (PWM) modules, each with three complementary, individually programmable PWM signal output pairs, supporting various motor types.
- Four 12-bit Analog-to-Digital Converters (ADCs) with quad, 4-pin multiplexed inputs.
- Two four-input Quadrature Decoders for position sensing and speed computation.
- Integrated watchdog timer and optional on-chip regulator.
- Temperature sensor capability through ADC inputs.
- Quad Timers and GPIO support.
Applications
- Motor control: AC Induction Motors (ACIM), Brush and Brushless DC motors (BDC and BLDC), Switched and Variable Reluctance Motors (SRM and VRM), and stepper motors.
- Lighting applications.
- Automation and industrial control systems.
- Other applications requiring advanced DSP and control capabilities.
Q & A
- What is the core architecture of the MC56F8365MFGE?
The MC56F8365MFGE is based on a 16-bit 56800E core with a Harvard-style architecture.
- How much Program Flash does the MC56F8365MFGE have?
The device has 512 KB of Program Flash.
- What is the maximum operating frequency of the MC56F8365MFGE?
The maximum operating frequency is 60 MHz.
- How many PWM outputs does the MC56F8365MFGE support?
The device supports 12 PWM outputs through two PWM modules.
- What types of motors can the MC56F8365MFGE control?
The device can control ACIM, BDC, BLDC, SRM, VRM, and stepper motors.
- Does the MC56F8365MFGE have on-chip temperature sensing capability?
Yes, it can be connected to any of the ADC inputs to monitor the on-chip temperature.
- How many Quadrature Decoders does the MC56F8365MFGE have?
The device has two four-input Quadrature Decoders.
- What is the role of the Boot Flash in the MC56F8365MFGE?
The Boot Flash is used for easy customer inclusion of field-programmable software routines that can program the main Program and Data Flash memory areas.
- Does the MC56F8365MFGE support external interrupts?
Yes, it supports two external dedicated interrupt lines.
- What is the maximum number of GPIO lines available on the MC56F8365MFGE?
The device has up to 49 General Purpose Input/Output (GPIO) lines.
