Overview

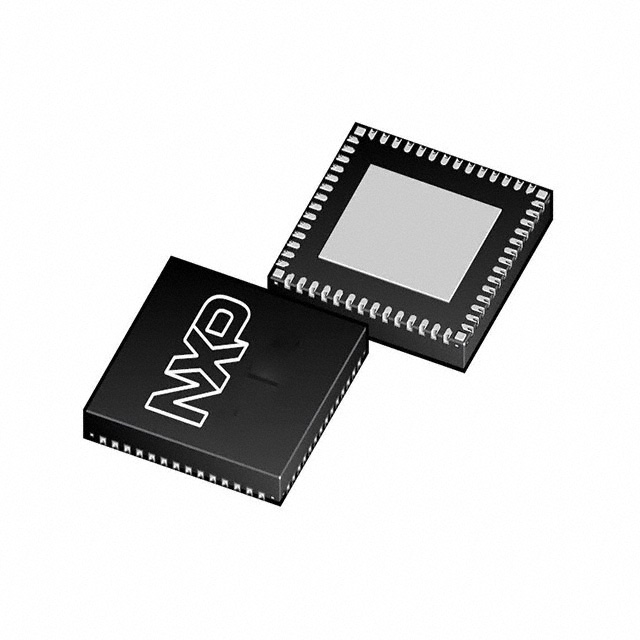

The MC34PF8100EPEPR2 is a 12-channel power management integrated circuit (PMIC) designed by NXP USA Inc. This PMIC is specifically tailored for high-performance applications, particularly those based on the i.MX 8 and S32x processors. It is engineered to provide comprehensive power management solutions, integrating multiple voltage regulators and other essential features to support complex system designs.
Key Specifications
| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Voltage - Supply | 2.5 | 5.5 | V | |
| Operating Temperature (TA) | -40 | 105 | °C | |
| Junction Temperature | -40 | 150 | °C | |
| Storage Temperature Range | -55 | 150 | °C | |
| Peak Package Reflow Temperature | 260 | °C | ||
| Mounting Type | Surface Mount, Wettable Flank | |||
| Package Type | 56-pin 8 x 8 QFN |
Key Features
- Up to seven high-efficiency buck converters
- Four linear regulators with load switch options
- RTC supply and coin cell charger
- Watchdog timer/monitor
- Monitoring circuit to fit ASIL B safety level
- One-time programmable device configuration
- 3.4 MHz I2C communication interface
Applications
The MC34PF8100EPEPR2 is designed for high-performance applications, particularly those using i.MX 8 and S32x processors. It is suitable for various automotive and industrial systems that require robust power management solutions. Key applications include:
- Automotive systems requiring high reliability and safety features
- Industrial control systems with multiple voltage requirements
- Embedded systems needing efficient power management
Q & A
- What is the MC34PF8100EPEPR2?
The MC34PF8100EPEPR2 is a 12-channel power management integrated circuit (PMIC) designed by NXP USA Inc.
- What are the key applications of the MC34PF8100EPEPR2?
It is used in high-performance applications, particularly those based on i.MX 8 and S32x processors, such as automotive and industrial systems.
- What is the operating temperature range of the MC34PF8100EPEPR2?
The operating temperature range is -40°C to 105°C.
- How many buck converters does the MC34PF8100EPEPR2 have?
It has up to seven high-efficiency buck converters.
- What type of package does the MC34PF8100EPEPR2 use?
The package type is a 56-pin 8 x 8 QFN.
- Does the MC34PF8100EPEPR2 support I2C communication?
Yes, it supports 3.4 MHz I2C communication.
- What safety features does the MC34PF8100EPEPR2 include?
It includes monitoring circuits to fit ASIL B safety level and a watchdog timer/monitor.
- Can the regulator parameters be adjusted after startup?
Yes, regulator parameters are adjustable through high-speed I2C after startup.
- Does the MC34PF8100EPEPR2 have a built-in RTC supply and coin cell charger?
Yes, it includes an RTC supply and a coin cell charger.
- What is the peak package reflow temperature for the MC34PF8100EPEPR2?
The peak package reflow temperature is 260°C.
