Overview

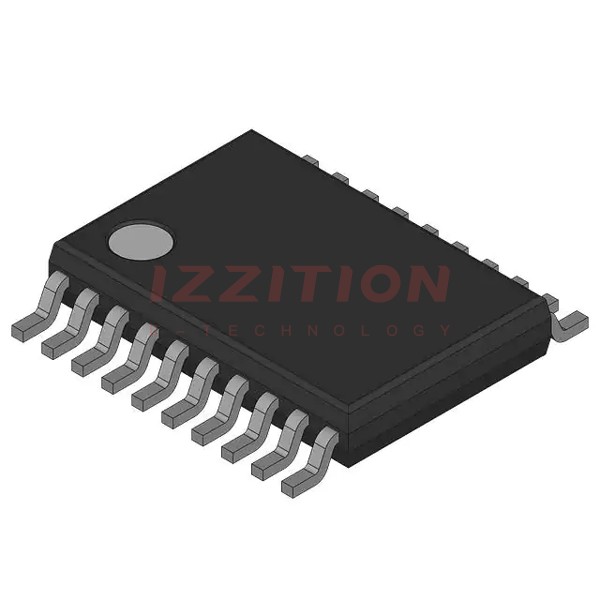

The LPC812M101JDH20FP is a low-cost, 32-bit ARM Cortex-M0+ based microcontroller designed by NXP Semiconductors. This microcontroller is tailored for embedded applications, offering a high performance-to-cost ratio and energy efficiency. It features a single-core ARM Cortex-M0+ processor, operating at speeds up to 30 MHz, and is packaged in a compact 20-TSSOP (0.173', 4.40mm Width) surface mount package. The device is suitable for a wide range of applications due to its flexible I/O options and broad operating temperature range of -40°C to +105°C.
Key Specifications
| Parameter | Specification |
|---|---|
| Core Processor | ARM Cortex-M0+ |
| Core Size | 32-Bit |
| Operating Speed | Up to 30 MHz |
| Program Memory Size | 16 KB Flash |
| RAM Size | 4 KB |
| Supply Voltage | 1.8V to 3.6V |
| Operating Temperature | -40°C to +105°C |
| Package | 20-TSSOP (0.173', 4.40mm Width) |
| Mounting Type | Surface Mount |
| Connectivity | I2C, SPI, UART/USART |
| I/O Pins | 18 |
Key Features
- ARM Cortex-M0+ Core: Provides high performance and energy efficiency.
- Flexible I/O Options: 18 I/O pins with a switch matrix for flexible configuration.
- Internal Oscillator: Reduces the need for external components.
- Power Management: Includes Power-On Reset (POR), Brown-out Detect/Reset, and various power-down modes.
- Peripheral Support: CRC engine, I2C-bus interface, up to three USARTs, up to two SPI interfaces, and multiple timers.
- Operating Temperature Range: -40°C to +105°C, making it suitable for extreme environmental conditions.
Applications
- Consumer Electronics: Suitable for various consumer devices due to its low power consumption and compact size.
- Industrial Control: Used in automation and control systems requiring reliable and efficient microcontrollers.
- Internet of Things (IoT): Ideal for IoT applications that demand low power and high performance.
- Low-power Applications: Extends battery life in portable devices.
- Motor Control and Climate Control: Can be used in motor control and climate control systems due to its robust peripherals.
Q & A
- What is the core processor of the LPC812M101JDH20FP?
The core processor is the ARM Cortex-M0+.
- What is the maximum operating speed of the LPC812M101JDH20FP?
The maximum operating speed is up to 30 MHz.
- How much program memory and RAM does the LPC812M101JDH20FP have?
The device has 16 KB of flash memory and 4 KB of RAM.
- What is the operating temperature range of the LPC812M101JDH20FP?
The operating temperature range is -40°C to +105°C.
- What types of connectivity does the LPC812M101JDH20FP support?
The device supports I2C, SPI, and UART/USART protocols.
- Does the LPC812M101JDH20FP have any power management features?
Yes, it includes Power-On Reset (POR), Brown-out Detect/Reset, and various power-down modes.
- What are some common applications of the LPC812M101JDH20FP?
Common applications include consumer electronics, industrial control, IoT, low-power applications, and motor control.
- What is the package type of the LPC812M101JDH20FP?
The package type is 20-TSSOP (0.173', 4.40mm Width).
- Is the LPC812M101JDH20FP suitable for extreme environmental conditions?
Yes, it is suitable due to its broad operating temperature range.
- Does the LPC812M101JDH20FP have a built-in oscillator?
Yes, it has an internal oscillator.
