Overview

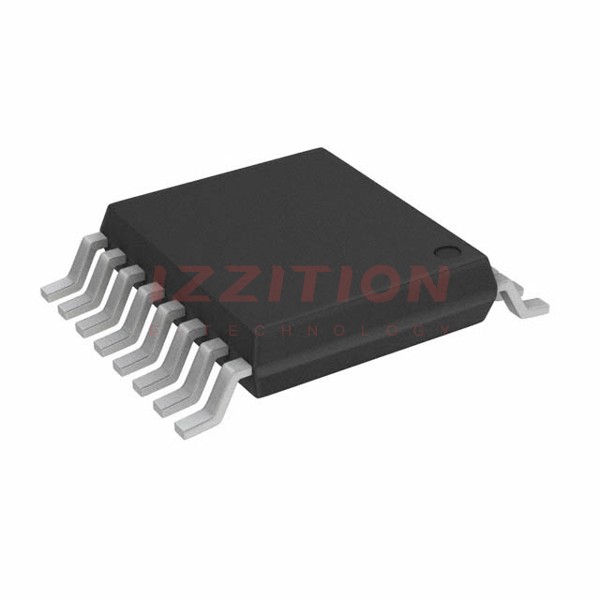

The LPC802M001JDH16J is a microcontroller unit (MCU) from NXP USA Inc., part of the LPC80x family. This MCU is based on the Arm Cortex-M0+ core, offering a cost-effective and power-efficient solution for various embedded applications. It operates at CPU frequencies of up to 15 MHz, making it suitable for entry-level and low-cost projects. The LPC802M001JDH16J is supported by the MCUXpresso development environment, facilitating ease of development and integration into different systems.
Key Specifications
| Specification | Details |
|---|---|
| Core | Arm Cortex-M0+ |
| Bit Width | 32-bit |
| Maximum CPU Frequency | Up to 15 MHz |
| Flash Memory | Up to 16 KB |
| SRAM | Up to 4 KB |
| Interfaces | One I2C-bus interface, up to two USARTs, one SPI interface |
| Timers | One multi-rate timer |
Key Features
- Low power consumption and high efficiency
- Cost-effective solution for entry-level applications
- Supported by MCUXpresso development environment
- Compact package options for space-constrained designs
- Peripheral complement includes I2C, USART, SPI, and multi-rate timer
Applications
- Consumer electronics
- Industrial control systems
- Automotive systems
- IoT devices
- General-purpose embedded systems
Q & A
- What is the core architecture of the LPC802M001JDH16J? The LPC802M001JDH16J is based on the Arm Cortex-M0+ core.
- What is the maximum CPU frequency of the LPC802M001JDH16J? The maximum CPU frequency is up to 15 MHz.
- How much flash memory does the LPC802M001JDH16J have? The LPC802M001JDH16J has up to 16 KB of flash memory.
- What development environment supports the LPC802M001JDH16J? The LPC802M001JDH16J is supported by the MCUXpresso development environment.
- What interfaces are available on the LPC802M001JDH16J? The LPC802M001JDH16J includes one I2C-bus interface, up to two USARTs, and one SPI interface.
- What kind of timers does the LPC802M001JDH16J have? The LPC802M001JDH16J has one multi-rate timer.
- Is the LPC802M001JDH16J suitable for low-power applications? Yes, the LPC802M001JDH16J is designed for low power consumption and high efficiency.
- What are some typical applications for the LPC802M001JDH16J? Typical applications include consumer electronics, industrial control systems, automotive systems, IoT devices, and general-purpose embedded systems.
- How much SRAM does the LPC802M001JDH16J have? The LPC802M001JDH16J has up to 4 KB of SRAM.
- What is the bit width of the LPC802M001JDH16J? The LPC802M001JDH16J is a 32-bit MCU.
