Overview

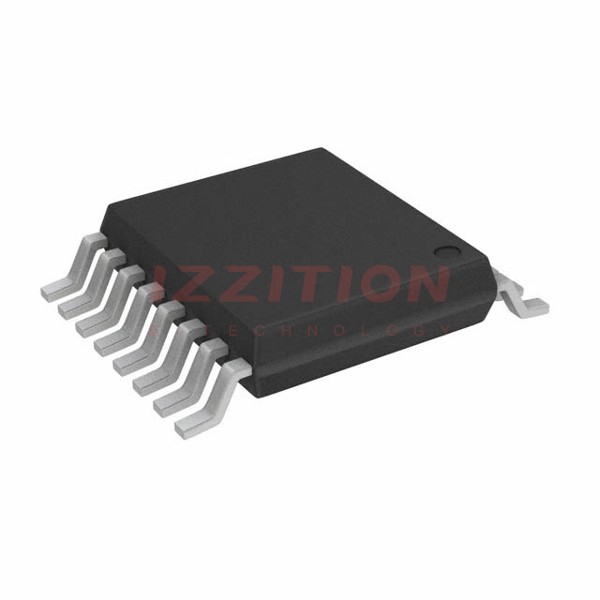

The LPC802M001JDH16FP is a 32-bit microcontroller from NXP USA Inc., part of the LPC80x family. It is based on the Arm Cortex-M0+ architecture, offering a cost-effective solution for various applications. This microcontroller operates at CPU frequencies of up to 15 MHz and is designed for low-power consumption and high performance.
Key Specifications
| Specification | Details |
|---|---|
| Processor Core | Arm Cortex-M0+ |
| Maximum CPU Frequency | Up to 15 MHz |
| Flash Memory | 16 KB |
| SRAM | 2 KB |
| EEPROM | 16 KB on-chip EEPROM based flash programming memory |
| ADC Resolution | 12-bit |
| Interfaces | I2C, up to two USARTs, SPI, multi-rate timer |
| GPIO | Up to 17 General-Purpose I/O (GPIO) pins |
| Power Supply | Single or dual power supplies (1.71 V to 3.6 V) |
| Operating Temperature | -40 °C to +105 °C |
| Package Options | TSSOP16, TSSOP20, HVQFN33 |
Key Features
- Arm Cortex-M0+ processor with Nested Vectored Interrupt Controller (NVIC)
- System tick timer and AHB multilayer matrix
- Serial Wire Debug (SWD) with four break points and two watch points, JTAG boundary scan supported
- Code Read Protection (CRP) and Flash In-Application Programming (IAP)
- In-System Programming (ISP) through USART
- High-speed GPIO interface with configurable pull-up/pull-down resistors and programmable open-drain mode
- High-current source output driver (20 mA) on three pins
- Unique device serial number for identification
- Switch matrix providing level shifter functionality
Applications
- Sensor gateways
- Simple motor control
- Industrial applications
- Portables and wearables
- Gaming controllers
- Lighting control
- 8/16-bit applications
- Motor control
- Consumer electronics
- Fire and security applications
- Climate control
Q & A
- What is the processor core of the LPC802M001JDH16FP?
The processor core is the Arm Cortex-M0+. - What is the maximum CPU frequency of the LPC802M001JDH16FP?
The maximum CPU frequency is up to 15 MHz. - How much flash memory does the LPC802M001JDH16FP have?
The LPC802M001JDH16FP has 16 KB of flash memory. - What is the SRAM capacity of the LPC802M001JDH16FP?
The SRAM capacity is 2 KB. - What interfaces are supported by the LPC802M001JDH16FP?
The interfaces supported include I2C, up to two USARTs, SPI, and a multi-rate timer. - What is the resolution of the ADC in the LPC802M001JDH16FP?
The ADC resolution is 12-bit. - What are the power supply options for the LPC802M001JDH16FP?
The LPC802M001JDH16FP supports single or dual power supplies (1.71 V to 3.6 V). - What is the operating temperature range of the LPC802M001JDH16FP?
The operating temperature range is -40 °C to +105 °C. - In what packages is the LPC802M001JDH16FP available?
The LPC802M001JDH16FP is available in TSSOP16, TSSOP20, and HVQFN33 packages. - Does the LPC802M001JDH16FP support in-system programming?
Yes, it supports In-System Programming (ISP) through USART.
