Overview

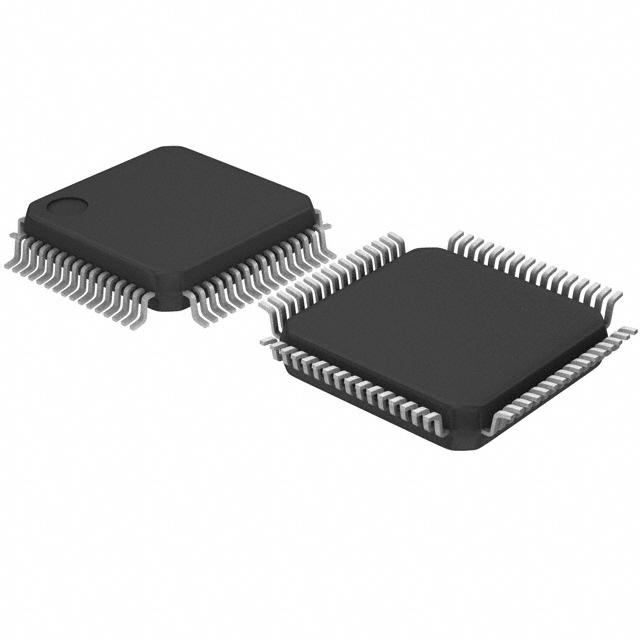

The LPC54113J128BD64Y is a dual-core microcontroller from NXP USA Inc., part of the LPC5411x series. It is based on the ARM Cortex-M4 and Cortex-M0+ architectures, making it a versatile choice for a wide range of embedded applications. This microcontroller is designed to offer high performance, low power consumption, and advanced peripherals, making it suitable for various industrial, automotive, and consumer electronics projects.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | ARM Cortex-M4/M0+ |
| Core Frequency | Up to 100 MHz |
| Flash Memory | 128 KB |
| SRAM | Up to 192 KB |
| Package Type | BGA64 |
| Operating Voltage | 1.71 V to 3.6 V |
| Operating Temperature | -40°C to 105°C |
Key Features
- Dual-core architecture with ARM Cortex-M4 and Cortex-M0+ cores
- High-performance processing up to 100 MHz
- Low power consumption with multiple power modes
- Advanced peripherals including UART, SPI, I2C, and I2S
- Integrated ADC, DAC, and analog comparators
- Support for various communication protocols such as USB, CAN, and Ethernet
- Secure boot and cryptographic acceleration
Applications
- Industrial automation and control systems
- Automotive systems, including infotainment and safety features
- Consumer electronics such as smart home devices and wearables
- Medical devices requiring high precision and reliability
- IoT applications needing low power and high performance
Q & A
- What is the core architecture of the LPC54113J128BD64Y? The LPC54113J128BD64Y features a dual-core architecture with an ARM Cortex-M4 and an ARM Cortex-M0+ core.
- What is the maximum operating frequency of the microcontroller? The maximum operating frequency is up to 100 MHz.
- How much flash memory does the LPC54113J128BD64Y have? It has 128 KB of flash memory.
- What is the package type of the LPC54113J128BD64Y? The package type is BGA64.
- What are the operating voltage and temperature ranges? The operating voltage range is 1.71 V to 3.6 V, and the operating temperature range is -40°C to 105°C.
- Does the LPC54113J128BD64Y support secure boot and cryptographic functions? Yes, it supports secure boot and cryptographic acceleration.
- What types of communication protocols are supported by the LPC54113J128BD64Y? It supports various protocols including USB, CAN, Ethernet, UART, SPI, I2C, and I2S.
- What are some typical applications of the LPC54113J128BD64Y? Typical applications include industrial automation, automotive systems, consumer electronics, medical devices, and IoT applications.
- Where can I find detailed datasheets for the LPC54113J128BD64Y? Detailed datasheets can be found on official NXP websites, as well as through distributors like Digi-Key, Mouser, and LoveChip.
- Is the LPC54113J128BD64Y suitable for low-power applications? Yes, it is designed with low power consumption in mind, making it suitable for low-power applications.
