Overview

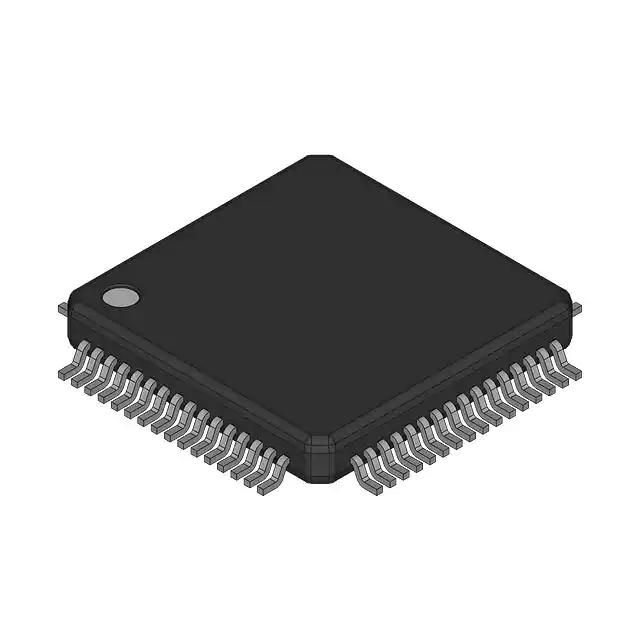

The LPC54102J512BD64151 is a 32-bit microcontroller from NXP USA Inc., part of the LPC54100 series. This device features a dual-core architecture with an ARM® Cortex®-M4 and an ARM® Cortex®-M0+ core, operating at a speed of up to 100MHz. It is designed for a wide range of applications requiring high performance, low power consumption, and advanced peripherals. The microcontroller is packaged in a 64-lead LQFP (Low Profile Quad Flat Package) with a body size of 10 x 10 x 1.4 mm.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | ARM® Cortex®-M4/M0+ |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 104K x 8 |
| EEPROM Size | - |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP (10x10) |
| Number of I/O | 50 |
| Connectivity | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Key Features
- Dual-core architecture with ARM® Cortex®-M4 and ARM® Cortex®-M0+ cores for high performance and low power consumption.
- High-speed operation up to 100MHz.
- 512KB of FLASH program memory and 104KB of RAM.
- 12-bit ADC with 1 channel.
- Internal oscillator and support for various peripherals including Brown-out Detect/Reset, POR, PWM, and WDT.
- Multiple connectivity options: I²C, SPI, UART/USART.
- Wide operating temperature range: -40°C to 105°C.
Applications
The LPC54102J512BD64151 microcontroller is suitable for a variety of applications, including but not limited to:
- Industrial automation and control systems.
- Consumer electronics requiring advanced peripherals and low power consumption.
- Automotive systems, such as infotainment and body control modules.
- Medical devices that require precise control and low power operation.
- Internet of Things (IoT) devices and smart home applications.
Q & A
- What is the core architecture of the LPC54102J512BD64151 microcontroller?
The LPC54102J512BD64151 features a dual-core architecture with an ARM® Cortex®-M4 and an ARM® Cortex®-M0+ core. - What is the maximum operating speed of the LPC54102J512BD64151?
The maximum operating speed is up to 100MHz. - How much program memory and RAM does the LPC54102J512BD64151 have?
The device has 512KB of FLASH program memory and 104KB of RAM. - What types of data converters are available on the LPC54102J512BD64151?
The device includes a 12-bit ADC with 1 channel. - What are the operating temperature ranges for the LPC54102J512BD64151?
The operating temperature range is -40°C to 105°C. - What are the primary connectivity options available on the LPC54102J512BD64151?
The device supports I²C, SPI, and UART/USART connectivity. - What is the package type and size of the LPC54102J512BD64151?
The device is packaged in a 64-lead LQFP (Low Profile Quad Flat Package) with a body size of 10 x 10 x 1.4 mm. - What are some of the key peripherals supported by the LPC54102J512BD64151?
The device supports Brown-out Detect/Reset, POR, PWM, and WDT. - What is the voltage supply range for the LPC54102J512BD64151?
The voltage supply range is 1.62V to 3.6V. - Is the LPC54102J512BD64151 suitable for automotive applications?
Yes, it is suitable for automotive systems such as infotainment and body control modules due to its robust features and wide operating temperature range.
