Overview
The LPC4078FBD100551 is a 32-bit microcontroller from NXP USA Inc., designed to provide high performance and versatility for a wide range of applications. This microcontroller is part of the LPC4000 series, known for its robust feature set and efficient power management. It is particularly suited for embedded systems that require advanced processing capabilities, low power consumption, and a variety of peripheral options.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Type | 32-bit |
| Flash Memory | 512 KB |

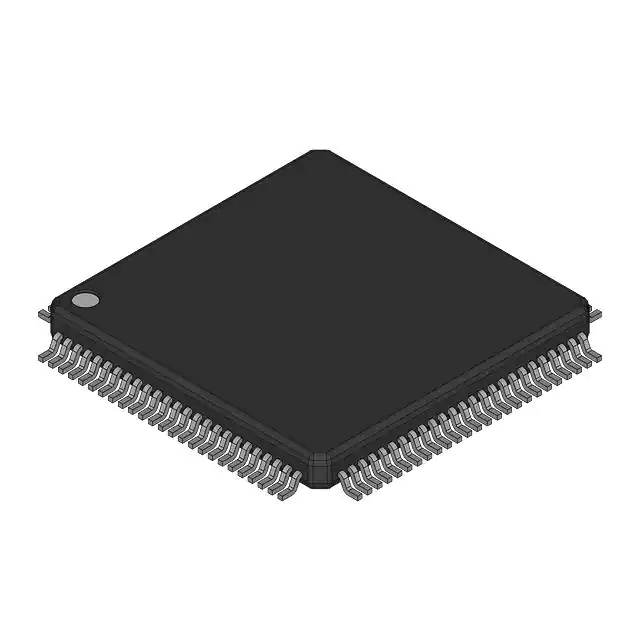

| Package Type | 100-LQFP (14x14 mm) |
| Core Architecture | ARM Cortex-M4 |
| Clock Speed | Up to 120 MHz |
| Peripheral Interfaces | UART, SPI, I2C, I2S, USB, CAN, etc. |
| Power Supply | 1.8V to 3.6V |
| Operating Temperature | -40°C to 85°C |
Key Features
- High Performance: The LPC4078FBD100551 features an ARM Cortex-M4 core, providing high processing power and efficiency.
- Low Power Consumption: Designed with power-saving features, making it suitable for battery-powered devices.
- Rich Peripheral Set: Includes a variety of interfaces such as UART, SPI, I2C, I2S, USB, and CAN, enabling versatile connectivity options.
- Large Flash Memory: Equipped with 512 KB of flash memory, allowing for extensive code storage and complex application development.
- Compact Package: The 100-LQFP package is compact and suitable for space-constrained designs.
Applications
- Industrial Automation: Used in control systems, sensors, and actuators due to its robust peripheral set and high reliability.
- Consumer Electronics: Suitable for smart home devices, wearables, and other consumer electronics requiring advanced processing and low power consumption.
- Medical Devices: Applied in medical equipment where precision and reliability are critical.
- Automotive Systems: Used in various automotive applications, including infotainment systems and vehicle control units.
Q & A
- What is the core architecture of the LPC4078FBD100551?
The core architecture is ARM Cortex-M4. - How much flash memory does the LPC4078FBD100551 have?
It has 512 KB of flash memory. - What is the package type of the LPC4078FBD100551?
The package type is 100-LQFP (14x14 mm). - What is the maximum clock speed of the LPC4078FBD100551?
The maximum clock speed is up to 120 MHz. - What are the typical applications of the LPC4078FBD100551?
Typical applications include industrial automation, consumer electronics, medical devices, and automotive systems. - What is the operating temperature range of the LPC4078FBD100551?
The operating temperature range is -40°C to 85°C. - Does the LPC4078FBD100551 support USB?
Yes, it supports USB along with other interfaces like UART, SPI, I2C, I2S, and CAN. - What is the power supply range for the LPC4078FBD100551?
The power supply range is 1.8V to 3.6V. - Is the LPC4078FBD100551 suitable for battery-powered devices?
Yes, it is designed with power-saving features, making it suitable for battery-powered devices. - Where can I find detailed specifications and datasheets for the LPC4078FBD100551?
Detailed specifications and datasheets can be found on the official NXP website or through distributors like Mouser and Hard Find Electronics.
