Overview
The LPC1778FET208K is a high-performance 32-bit microcontroller from NXP USA Inc., based on the ARM Cortex-M3 core. This microcontroller is designed to offer a balance of performance, power efficiency, and peripheral functionality, making it suitable for a wide range of applications. It features 512kB of flash memory and 96kB of SRAM, along with integrated Ethernet and USB interfaces.
Key Specifications
| Parameter | Value |
|---|---|
| Core | ARM Cortex-M3 |
| Bit Width | 32-bit |
| Flash Memory | 512kB |
| SRAM | 96kB |
| Maximum Clock Speed | 120MHz |

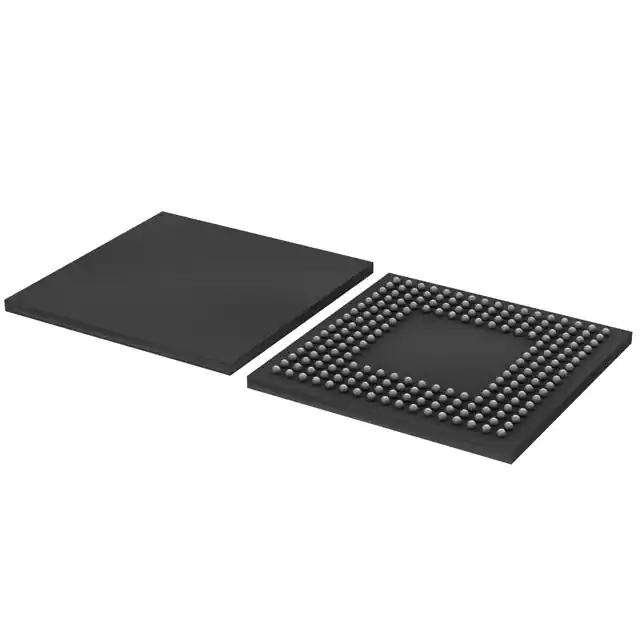

| Package Type | TFBGA208 (15x15) |
| Voltage Range | 2.4V to 3.6V |
| Integrated Interfaces | Ethernet, USB |
| Compliance | PbFree, EU RoHS, Halogen Free, REACH SVHC compliant |
Key Features
- High-performance ARM Cortex-M3 core
- 512kB flash memory and 96kB SRAM
- Integrated Ethernet and USB interfaces
- Support for various communication protocols
- Low power consumption
- TFBGA208 package for compact design
- Compliant with PbFree, EU RoHS, and Halogen Free standards
Applications
The LPC1778FET208K is versatile and can be used in a variety of applications, including:
- Industrial control systems
- Medical devices
- Consumer electronics
- Automotive systems
- Networking and communication devices
- IoT devices
Q & A
- What is the core architecture of the LPC1778FET208K?
The LPC1778FET208K is based on the ARM Cortex-M3 core. - How much flash and SRAM does the LPC1778FET208K have?
The LPC1778FET208K has 512kB of flash memory and 96kB of SRAM. - What is the maximum clock speed of the LPC1778FET208K?
The maximum clock speed is 120MHz. - What package type is the LPC1778FET208K available in?
The LPC1778FET208K is available in a TFBGA208 package. - Does the LPC1778FET208K have integrated Ethernet and USB?
Yes, it has integrated Ethernet and USB interfaces. - What is the voltage range for the LPC1778FET208K?
The voltage range is from 2.4V to 3.6V. - Is the LPC1778FET208K compliant with environmental standards?
Yes, it is PbFree, EU RoHS, and Halogen Free compliant. - What are some common applications for the LPC1778FET208K?
Common applications include industrial control systems, medical devices, consumer electronics, automotive systems, and IoT devices. - Where can I find design files and models for the LPC1778FET208K?
Design files and models can be found on the NXP Semiconductors website. - How can I ensure the LPC1778FET208K is properly integrated into my design?
Refer to the datasheet and design files provided by NXP Semiconductors for proper integration.
