Overview

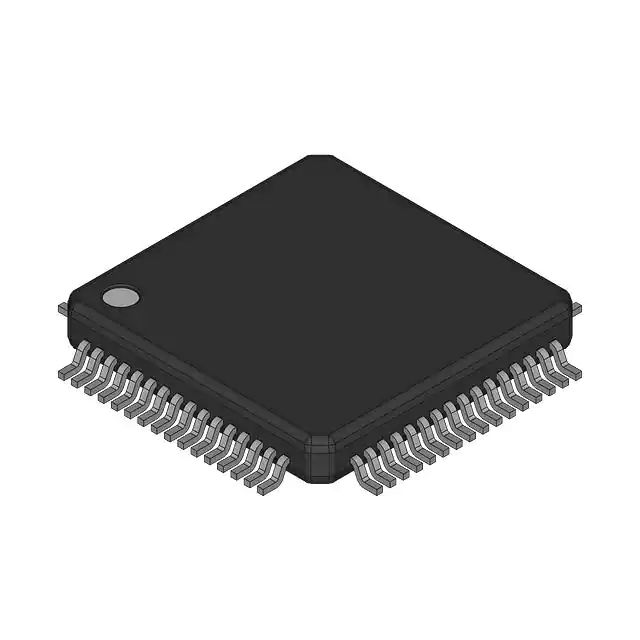

The LPC1225FBD64/321151 is an Arm® Cortex®-M0 based microcontroller designed by NXP USA Inc. for embedded applications. This microcontroller is known for its high level of integration and low power consumption, making it suitable for a variety of applications that require efficient performance and minimal energy usage.
Key Specifications
| Specification | Value |
|---|---|
| CPU Core | Arm® Cortex®-M0 |
| CPU Frequency | Up to 45 MHz |
| Flash Memory | Up to 80 kB |
| Data Memory | 8 kB |
| Package Type | 48-LQFP (7x7) |
| I/O Pins | Up to 55 General Purpose I/O (GPIO) pins |
| Peripherals | DMA controller, CRC engine, I2C interface, RTC, SSP/SPI interface, UARTs, general purpose timers, 10-bit ADC, comparators |
Key Features
- High level of integration with multiple peripherals such as DMA controller, CRC engine, I2C interface, RTC, SSP/SPI interface, UARTs, general purpose timers, 10-bit ADC, and comparators.
- Low power consumption, making it energy-efficient for various applications.
- Up to 55 General Purpose I/O (GPIO) pins for flexible connectivity.
- Support for multiple communication interfaces including I2C, SPI, and UART.
Applications
The LPC1225FBD64/321151 microcontroller is versatile and can be used in a wide range of embedded applications, including:
- Industrial control systems
- Consumer electronics
- Automotive systems
- Medical devices
- IoT devices
Q & A
- What is the CPU core of the LPC1225FBD64/321151 microcontroller?
The CPU core is Arm® Cortex®-M0. - What is the maximum CPU frequency of the LPC1225FBD64/321151?
The maximum CPU frequency is up to 45 MHz. - How much Flash memory does the LPC1225FBD64/321151 have?
The LPC1225FBD64/321151 has up to 80 kB of Flash memory. - What is the package type of the LPC1225FBD64/321151?
The package type is 48-LQFP (7x7). - What peripherals are included in the LPC1225FBD64/321151?
The peripherals include a DMA controller, CRC engine, I2C interface, RTC, SSP/SPI interface, UARTs, general purpose timers, 10-bit ADC, and comparators. - How many General Purpose I/O (GPIO) pins does the LPC1225FBD64/321151 have?
The LPC1225FBD64/321151 has up to 55 General Purpose I/O (GPIO) pins. - What are some typical applications of the LPC1225FBD64/321151 microcontroller?
Typical applications include industrial control systems, consumer electronics, automotive systems, medical devices, and IoT devices. - Is the LPC1225FBD64/321151 energy-efficient?
Yes, the LPC1225FBD64/321151 is designed for low power consumption. - Where can I find detailed documentation for the LPC1225FBD64/321151?
Detailed documentation can be found on the NXP Semiconductors website and through authorized distributors. - What is the operating temperature range of the LPC1225FBD64/321151?
The operating temperature range is typically from -40°C to 85°C, though specific ranges may vary based on the application.
