Overview

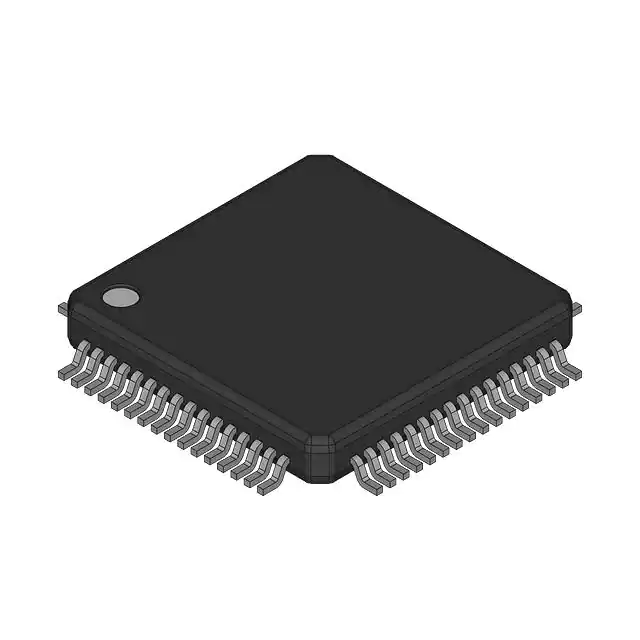

The LPC11E68JBD64K is a 32-bit microcontroller from NXP USA Inc., based on the ARM Cortex-M0+ core. This microcontroller is part of the LPC11E00 series, known for its scalability and entry-level performance. It is packaged in a 64-lead Low Profile Quad Flat Package (LQFP) with a body size of 10 x 10 x 1.4 mm. The LPC11E68JBD64K is designed for a wide range of applications requiring low power consumption, high performance, and multiple peripheral options.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. |
| Part Number | LPC11E68JBD64K |
| Core Processor | ARM Cortex-M0+ |
| Flash Memory | 256 KB |
| RAM | 8 KB |
| Package Type | 64-LQFP (10x10 mm) |
| Operating Frequency | Up to 50 MHz |
| Supply Voltage | 2.4 V to 3.6 V |
| Operating Temperature | -40°C to 85°C |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART |
| RoHS Status | RoHS Compliant |
Key Features
- ARM Cortex-M0+ Core: Provides high performance and low power consumption.
- Flash and RAM: 256 KB of flash memory and 8 KB of RAM for efficient code execution and data storage.
- Multiple Peripherals: Includes I²C, IrDA, Microwire, SPI, SSI, SSP, and UART/USART for versatile communication options.
- Low Power Modes: Supports various low power modes to minimize energy consumption.
- Robust Security Features: Includes brown-out detect/reset, DMA, POR, and WDT for reliable operation.
Applications
- Industrial Automation: Suitable for control systems, sensors, and actuators in industrial environments.
- Consumer Electronics: Used in smart home devices, wearables, and other consumer electronics requiring low power and high performance.
- Medical Devices: Applicable in medical devices that require precise control and low power consumption.
- Automotive Systems: Can be used in various automotive applications such as infotainment systems and vehicle control units.
Q & A
- What is the core processor of the LPC11E68JBD64K?
The core processor is the ARM Cortex-M0+.
- How much flash memory does the LPC11E68JBD64K have?
The LPC11E68JBD64K has 256 KB of flash memory.
- What is the package type of the LPC11E68JBD64K?
The package type is a 64-lead Low Profile Quad Flat Package (LQFP).
- What are the operating voltage and frequency ranges of the LPC11E68JBD64K?
The operating voltage range is 2.4 V to 3.6 V, and the operating frequency can go up to 50 MHz.
- Is the LPC11E68JBD64K RoHS compliant?
- What peripherals are available on the LPC11E68JBD64K?
The peripherals include I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, brown-out detect/reset, DMA, POR, and WDT.
- What are some typical applications of the LPC11E68JBD64K?
Typical applications include industrial automation, consumer electronics, medical devices, and automotive systems.
- What is the operating temperature range of the LPC11E68JBD64K?
The operating temperature range is -40°C to 85°C.
- How much RAM does the LPC11E68JBD64K have?
The LPC11E68JBD64K has 8 KB of RAM.
- Where can I find detailed specifications and datasheets for the LPC11E68JBD64K?
Detailed specifications and datasheets can be found on the official NXP website, as well as on distributor websites such as Digi-Key and Farnell element14.
