Overview

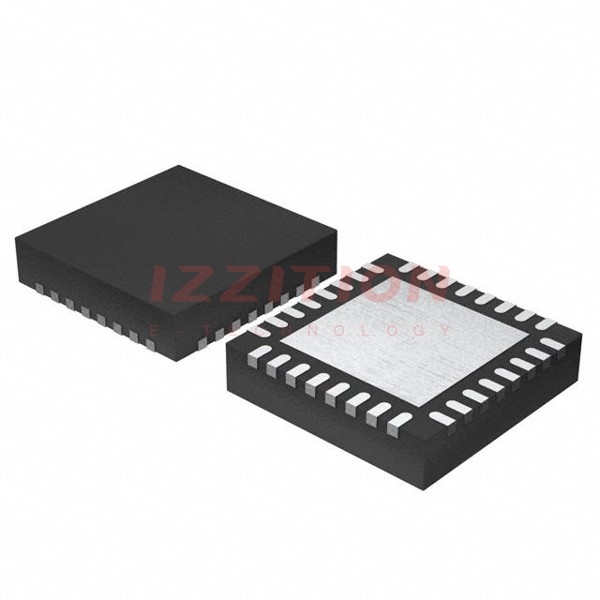

The LPC1114JHI33/303551 is a 32-bit microcontroller from NXP USA Inc., part of the LPC11xx MCU family. This microcontroller is based on the Arm Cortex-M0 architecture and is designed for low-cost, high-performance applications. It operates at CPU frequencies of up to 50 MHz and features a compact 32-pin HVQFN package.
Key Specifications
| Parameter | Value |
|---|---|
| Microcontroller Family | LPC11xx |
| Core Architecture | Arm Cortex-M0 |
| Maximum CPU Frequency | Up to 50 MHz |
| Flash Memory | 32 KB |
| Package Type | 32-pin HVQFN (7x7 mm) |
| Operating Voltage | 2.0 V to 3.6 V |
| Temperature Range | -40°C to 85°C |
Key Features
- Low power consumption with multiple power modes
- Integrated peripherals including UART, SPI, I2C, and GPIO
- On-chip bootloader for easy firmware updates
- Support for various development tools and software frameworks
- Compact and cost-effective design
Applications
The LPC1114JHI33/303551 is suitable for a variety of applications, including:
- Industrial control systems
- Consumer electronics
- Medical devices
- Automotive systems
- IoT devices and smart home applications
Q & A
- What is the core architecture of the LPC1114JHI33/303551?
The core architecture is Arm Cortex-M0. - What is the maximum CPU frequency of this microcontroller?
The maximum CPU frequency is up to 50 MHz. - How much flash memory does the LPC1114JHI33/303551 have?
It has 32 KB of flash memory. - What is the package type of this microcontroller?
The package type is 32-pin HVQFN (7x7 mm). - What is the operating voltage range of the LPC1114JHI33/303551?
The operating voltage range is 2.0 V to 3.6 V. - What are some of the integrated peripherals available on this microcontroller?
Integrated peripherals include UART, SPI, I2C, and GPIO. - Is there an on-chip bootloader available for firmware updates?
Yes, there is an on-chip bootloader for easy firmware updates. - What are some common applications for the LPC1114JHI33/303551?
Common applications include industrial control systems, consumer electronics, medical devices, automotive systems, and IoT devices. - What is the temperature range for this microcontroller?
The temperature range is -40°C to 85°C. - Is the LPC1114JHI33/303551 suitable for low-power applications?
Yes, it is designed for low power consumption with multiple power modes.
