Overview
The FS32K144UAT0VLHT is a 32-bit microcontroller from NXP USA Inc., part of the S32K1 family. This microcontroller is based on the Arm® Cortex®-M4F core, which supports DSP and FPU instructions, making it suitable for high-performance and safety-critical applications. The S32K1 series is designed to offer robust performance, extensive connectivity, and a wide range of peripherals, making it ideal for various embedded systems.
Key Specifications
| Parameter | Value |
|---|---|
| Core Processor | Arm® Cortex®-M4F |
| Core Speed | 80 MHz |
| Number of I/O | 58 |
| Program Memory Size | 1 MB |
| RAM Size | 128 KB |
| Data Converters | 24 A/D channels, 12-bit SAR; 1 D/A channel, 8-bit |
| Oscillator Type | Internal |
| Connectivity | CANbus, FlexIO, I2C, LINbus, SPI, UART/USART |
| Peripherals | Power-on Reset (POR), Pulse Width Modulation (PWM), Watchdog Timer (WDT) |
| EEPROM Size | 4 KB |
| Voltage Supply | 2.7V to 5.5V |
| Operating Temperature | -40°C to 125°C |
| Mounting Type | Surface Mount |

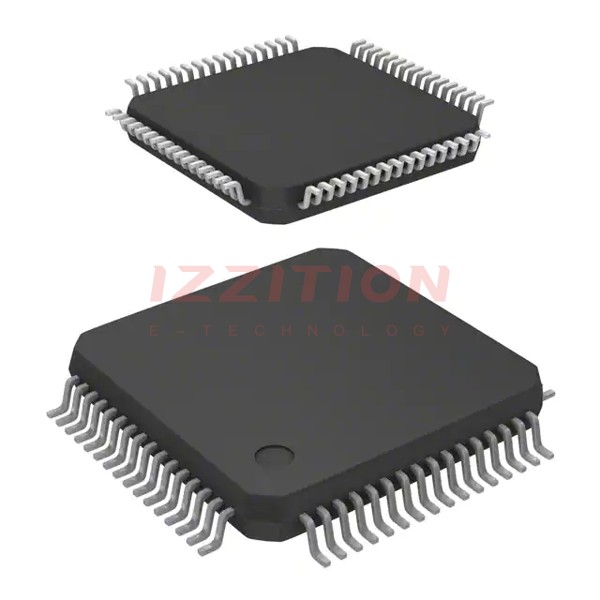

| Package Type | 64-LQFP (10x10) |
Key Features
- Robust performance with Arm Cortex M4F core supporting DSP and FPU instructions.
- Extensive connectivity and sensor interfacing capabilities through CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART.
- Internal oscillator simplifies system design.
- Large array of analog and digital peripherals supporting complex applications.
- Built-in safety features for reliable operation under adverse conditions.
- High integration reduces the need for external components.
- Wide operating voltage and temperature range ideal for harsh environments.
Applications
- Automotive systems: Suitable for various automotive applications due to its robust performance and safety features.
- Industrial control systems: Ideal for industrial automation and control systems requiring high reliability and performance.
- Consumer electronics: Used in consumer electronics that demand high-performance and low power consumption.
- Internet of Things (IoT) devices: Suitable for IoT applications requiring extensive connectivity and sensor interfacing.
Q & A
- What is the core processor of the FS32K144UAT0VLHT?
The core processor is the Arm® Cortex®-M4F.
- What is the maximum operating speed of the FS32K144UAT0VLHT?
The maximum operating speed is 80 MHz.
- How many I/O pins does the FS32K144UAT0VLHT have?
The FS32K144UAT0VLHT has 58 I/O pins.
- What is the program memory size of the FS32K144UAT0VLHT?
The program memory size is 1 MB.
- What are the data conversion capabilities of the FS32K144UAT0VLHT?
The FS32K144UAT0VLHT has 24 A/D channels (12-bit SAR) and 1 D/A channel (8-bit).
- What types of connectivity does the FS32K144UAT0VLHT support?
The FS32K144UAT0VLHT supports CANbus, FlexIO, I2C, LINbus, SPI, and UART/USART.
- What is the operating voltage range of the FS32K144UAT0VLHT?
The operating voltage range is 2.7V to 5.5V.
- What is the operating temperature range of the FS32K144UAT0VLHT?
The operating temperature range is -40°C to 125°C.
- What package type does the FS32K144UAT0VLHT come in?
The FS32K144UAT0VLHT comes in a 64-LQFP (10x10) package.
- What are some typical applications of the FS32K144UAT0VLHT?
Typical applications include automotive systems, industrial control systems, consumer electronics, and IoT devices.
