Overview

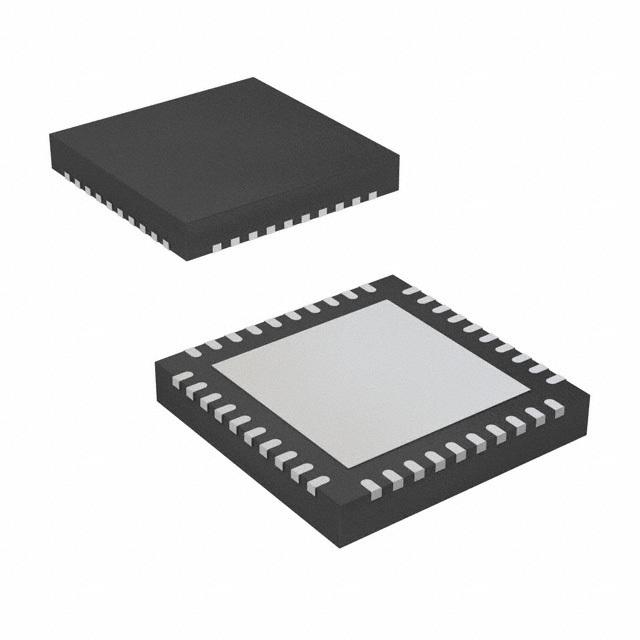

The ADC1015S is a single-channel 10-bit Analog-to-Digital Converter (ADC) designed for high dynamic performance and low power consumption. It operates at sample rates up to 125 Msps and features a pipelined architecture with output error correction, ensuring zero missing codes over the entire operating range. The ADC is supplied from a single 3 V source and supports output logic levels from 1.8 V to 3.3 V in CMOS mode, as well as Low Voltage Differential Signalling (LVDS) Double Data Rate (DDR) output standard. An integrated Serial Peripheral Interface (SPI) allows for easy configuration, and the device includes a SPI-programmable full-scale to adjust the input voltage range from 1 V to 2 V (peak-to-peak).
Key Specifications
| Parameter | Value |
|---|---|
| Resolution | 10-bit |
| Sample Rate | Up to 125 Msps (65 Msps, 80 Msps, 105 Msps, 125 Msps) |
| Input Bandwidth | 600 MHz |
| Power Dissipation | 635 mW at 80 Msps (including analog input buffer) |
| Output Logic Levels | 1.8 V to 3.3 V (CMOS), LVDS DDR |
| Input Voltage Range | 1 V to 2 V (peak-to-peak) |
| SNR | 61.7 dBFS |
| SFDR | 86 dBc |
| Integrated Input Buffer | Yes |
| SPI Interface | Yes |
Key Features
- Pipelined ADC architecture with output error correction
- Supports CMOS and LVDS DDR digital outputs
- Integrated input buffer for constant and low input impedance
- SPI programmable full-scale input voltage range
- Fast Out-of-Range (OTR) detection
- Clock input divided by 2 for reduced jitter contribution
- Duty cycle stabilizer
- Flexible input voltage range: 1 V to 2 V (peak-to-peak)
Applications
The ADC1015S is ideal for various high-performance applications, including:
- Communications systems
- Imaging systems
- Medical applications
- High Intermediate Frequency (IF) applications
Q & A
- What is the resolution of the ADC1015S?
The ADC1015S has a resolution of 10 bits. - What are the available sample rates for the ADC1015S?
The ADC1015S operates at sample rates of 65 Msps, 80 Msps, 105 Msps, and 125 Msps. - What is the input bandwidth of the ADC1015S?
The input bandwidth of the ADC1015S is 600 MHz. - How much power does the ADC1015S consume at 80 Msps?
The power dissipation at 80 Msps, including the analog input buffer, is 635 mW. - What output logic levels does the ADC1015S support?
The ADC1015S supports output logic levels from 1.8 V to 3.3 V in CMOS mode and LVDS DDR. - What is the input voltage range of the ADC1015S?
The input voltage range is adjustable from 1 V to 2 V (peak-to-peak) via SPI. - Does the ADC1015S have an integrated input buffer?
Yes, the ADC1015S includes an integrated input buffer. - What interface does the ADC1015S use for configuration?
The ADC1015S uses a Serial Peripheral Interface (SPI) for configuration. - What are some typical applications of the ADC1015S?
The ADC1015S is used in communications, imaging, medical applications, and high Intermediate Frequency (IF) applications. - How does the ADC1015S ensure low jitter contribution?
The ADC1015S reduces jitter contribution by dividing the clock input by 2.
