Overview
The 74LVC2G53GT,115 is a 2-channel analog multiplexer/demultiplexer integrated circuit produced by NXP USA Inc., now known as Nexperia. This device is part of the LVC (Low Voltage CMOS) family and is designed for low-voltage applications. It features a single-pole double-throw (SPDT) configuration, making it versatile for various signal routing and switching tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74LVC2G53GT |
| Configuration | SPDT-Z |
| VCC (V) | 1.65 - 5.5 |
| Logic Switching Levels | CMOS/LVTTL |
| RON (Ω) | 15 |
| RON(FLAT) (Ω) | 1.5 |
| f (-3dB) (MHz) | 300 |
| THD (%) | 0.078 |
| Operating Temperature (°C) | -40 to 125 |

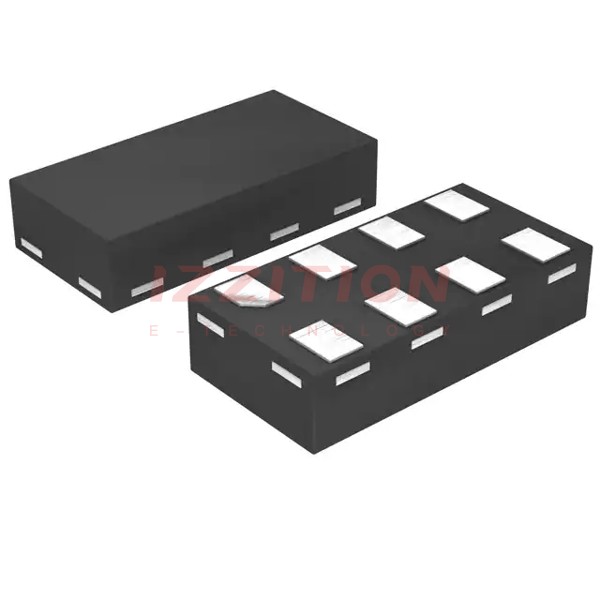

| Package | XSON8 (SOT833-1) |
Key Features
- Low On-Resistance: The device features a low on-resistance of 15 Ω, ensuring minimal signal attenuation.
- High Bandwidth: It has a -3dB bandwidth of 300 MHz, making it suitable for high-frequency applications.
- Low Charge Injection: With a charge injection of 7.5 pC, it minimizes the impact on sensitive analog signals.
- Wide Operating Voltage Range: The device operates over a voltage range of 1.65 to 5.5 V, supporting various logic levels.
- Compact Package: The XSON8 package is compact and suitable for space-constrained designs.
Applications
The 74LVC2G53GT,115 is used in a variety of applications, including:
- Audio and Video Switching: For routing audio and video signals in consumer electronics.
- Industrial Automation: In control systems and signal processing units.
- Medical Devices: For signal routing in medical diagnostic equipment.
- Telecommunications: In telecommunications equipment for signal switching.
Q & A
- What is the configuration of the 74LVC2G53GT,115?
The 74LVC2G53GT,115 is configured as a single-pole double-throw (SPDT) analog multiplexer/demultiplexer. - What is the operating voltage range of the 74LVC2G53GT,115?
The operating voltage range is from 1.65 to 5.5 V. - What is the on-resistance of the 74LVC2G53GT,115?
The on-resistance is 15 Ω. - What is the -3dB bandwidth of the 74LVC2G53GT,115?
The -3dB bandwidth is 300 MHz. - What is the charge injection of the 74LVC2G53GT,115?
The charge injection is 7.5 pC. - What is the package type of the 74LVC2G53GT,115?
The package type is XSON8 (SOT833-1). - What are the operating temperature limits of the 74LVC2G53GT,115?
The operating temperature range is from -40°C to 125°C. - Is the 74LVC2G53GT,115 RoHS compliant?
Yes, the 74LVC2G53GT,115 is RoHS compliant. - What are some common applications of the 74LVC2G53GT,115?
Common applications include audio and video switching, industrial automation, medical devices, and telecommunications. - Where can I find the datasheet for the 74LVC2G53GT,115?
The datasheet can be found on the Nexperia website or through authorized distributors like Digi-Key and Mouser.
