Overview

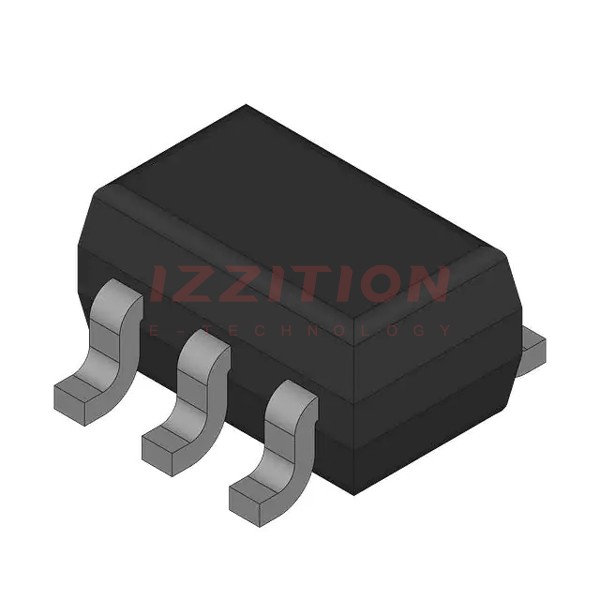

The 74LVC1G66GW/S400125 is a single 2-input OR gate integrated circuit produced by NXP USA Inc., now known as Nexperia. This component is part of the LVC (Low Voltage CMOS) series, which is designed for low-voltage applications and offers high speed and low power consumption. The device is packaged in a 5-pin TSSOP (Thin Shrink Small Outline Package) and is suitable for a wide range of digital logic applications.
Key Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NXP USA Inc. (Nexperia) |
| Package Type | 5-TSSOP |
| Number of Gates | 1 |
| Number of Inputs | 2 |
| Logic Function | OR Gate |
| Supply Voltage - Min | 1.65 V |
| Supply Voltage - Max | 5.5 V |
| Operating Temperature Range | -40°C to 125°C |
Key Features
- Low voltage CMOS technology for low power consumption and high speed.
- Wide supply voltage range from 1.65 V to 5.5 V.
- High noise immunity.
- ESD protection.
- Compact 5-pin TSSOP package.
Applications
The 74LVC1G66GW/S400125 is versatile and can be used in various digital logic applications, including:
- Mobile devices and portable electronics.
- Automotive systems.
- Industrial control systems.
- Consumer electronics.
- Communication devices.
Q & A
- What is the primary function of the 74LVC1G66GW/S400125? The primary function is to act as a single 2-input OR gate.
- What is the package type of this IC? The IC is packaged in a 5-pin TSSOP.
- What is the supply voltage range for this component? The supply voltage range is from 1.65 V to 5.5 V.
- What are the operating temperature limits for this IC? The operating temperature range is from -40°C to 125°C.
- Is this component suitable for high-speed applications? Yes, it is designed for high-speed applications with low power consumption.
- What are some common applications for this IC? Common applications include mobile devices, automotive systems, industrial control systems, consumer electronics, and communication devices.
- Does this IC have ESD protection? Yes, it includes ESD protection.
- Who is the manufacturer of this component? The manufacturer is NXP USA Inc., now known as Nexperia.
- What is the logic function of this gate? The logic function is an OR gate.
- How many inputs does this gate have? This gate has 2 inputs.
