Overview
The 74LVC1G32GW/AU125 is a single 2-input OR gate produced by NXP USA Inc. This device is part of the LVC (Low Voltage CMOS) family and is designed to operate in mixed 3.3 V and 5 V environments. It features Schmitt-trigger action at all inputs, making it tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF circuitry, which prevents backflow current when the device is powered down.
Key Specifications

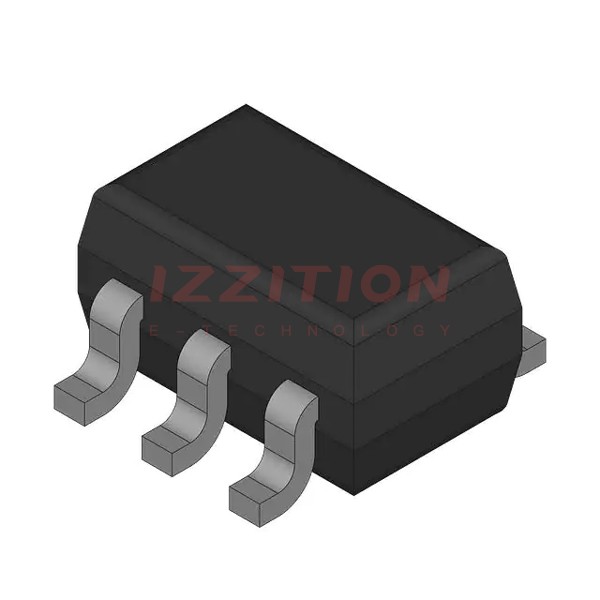

| Parameter | Min | Typ | Max | Unit |
|---|---|---|---|---|
| VCC supply voltage | 1.65 | 5.5 | V | |
| VI input voltage | 0 | 5.5 | V | |
| Output drive capability | ±24 | mA | ||
| tpd propagation delay | 2.1 | ns | ||
| fmax maximum frequency | 150 | MHz | ||
| Tamb ambient temperature | -40 | 125 | °C | |
| Package | TSSOP5 (SOT353-1) |
Key Features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- IOFF circuitry provides partial Power-down mode operation
- ±24 mA output drive (VCC = 3.0 V)
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Complies with JEDEC standards: JESD8-7, JESD8-5, JESD8-B/JESD36
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Applications
The 74LVC1G32GW/AU125 is suitable for a variety of applications, including:
- Mixed 3.3 V and 5 V environments where voltage translation is necessary
- Partial power-down applications where IOFF circuitry is beneficial
- Systems requiring high noise immunity and low power dissipation
- Interfaces with TTL levels
- General logic circuits in industrial, automotive, and consumer electronics
Q & A
- What is the primary function of the 74LVC1G32GW/AU125?
The primary function is to act as a single 2-input OR gate.
- What is the supply voltage range for this device?
The supply voltage range is from 1.65 V to 5.5 V.
- Can the inputs be driven from both 3.3 V and 5 V devices?
- What is the purpose of the IOFF circuitry?
The IOFF circuitry provides partial Power-down mode operation, disabling the output to prevent backflow current when the device is powered down.
- What is the output drive capability of the device?
The output drive capability is ±24 mA when VCC = 3.0 V.
- Does the device have ESD protection?
- What are the operating temperature ranges for this device?
The device operates from -40 °C to +125 °C.
- What package options are available for this device?
The device is available in TSSOP5 (SOT353-1) package.
- Is the device compliant with any specific standards?
- What is the maximum propagation delay of the device?
The maximum propagation delay is 2.1 ns.
