Overview

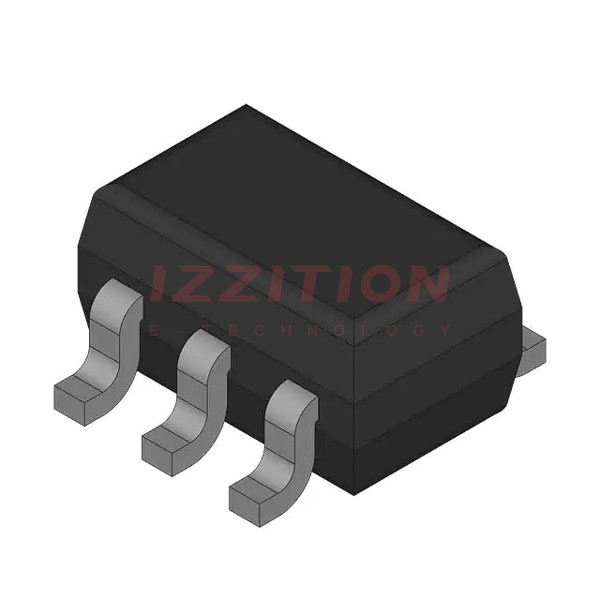

The 74LVC1G17GW,125 is a single non-inverting buffer with a Schmitt Trigger input, manufactured by Nexperia (previously part of NXP Semiconductors). This component is designed to ensure signal integrity and robust operation across a wide range of applications. It features a small footprint SOT353 package, making it suitable for space-constrained designs. The buffer supports a broad supply voltage range from 1.65V to 5.5V, making it versatile for various circuit requirements.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer Part Number | 74LVC1G17GW,125 | |
| Manufacturer | Nexperia (formerly NXP Semiconductors) | |
| Number of Elements | 1 | |
| Number of Bits per Element | 1 | |
| Current - Output High, Low | 32mA, 32mA | mA |
| Voltage - Supply | 1.65V ~ 5.5V | V |
| Operating Temperature | -40°C ~ 125°C | °C |
| Package | SOT353-1 (5-pin TSSOP) | |
| Dimensions | 2.2mm x 1.35mm x 1.0mm | mm |
| Input Hysteresis Voltage (VIH) | Typical 0.8V | V |
| Propagation Delay Time | Typical 3.6ns | ns |
| ESD Protection | HBM: 2 kV, CDM: 1 kV | kV |
Key Features
- Single non-inverting buffer with Schmitt Trigger input for noise suppression.
- Wide supply voltage range from 1.65V to 5.5V, compatible with 5V and 3.3V logic levels.
- High noise immunity and low power consumption for energy-efficient designs.
- Robust operation with 32mA output drive strength and high input impedance.
- Operates across an expansive temperature range (-40°C to 125°C), suitable for industrial environments.
- Small footprint SOT353 package for space-constrained applications.
- ESD protection exceeds JESD 22 standards and AEC-Q100 qualified for automotive applications.
- Low dynamic power consumption and fast propagation delay.
- RoHS compliant and lead-free construction.
Applications
- Signal processing and data communication.
- Industrial electronics and consumer electronics.
- Automotive industry, telecommunications, and data processing systems.
- Control systems, PCs, computer peripherals, hard drives, CD/DVD ROM, TV, DVD, DVR, set-top boxes.
- Cell phones, personal navigation/GPS, MP3 players, cameras, and video recorders.
Q & A
- What is the primary function of the 74LVC1G17GW,125?
The primary function is to act as a single non-inverting buffer with a Schmitt Trigger input, ensuring signal integrity and noise suppression.
- What is the supply voltage range for this component?
The supply voltage range is from 1.65V to 5.5V.
- What are the key benefits of the Schmitt Trigger input?
The Schmitt Trigger input provides high noise immunity and helps in suppressing noise in the signal.
- What is the operating temperature range of this component?
The operating temperature range is from -40°C to 125°C.
- What package type is used for this component?
The component is packaged in a 5-pin SOT353-1 (TSSOP) package.
- Is the component ESD protected?
Yes, it has ESD protection exceeding JESD 22 standards (HBM: 2 kV, CDM: 1 kV).
- What are some typical applications of this component?
It is used in signal processing, data communication, industrial electronics, consumer electronics, and automotive applications.
- Is the component RoHS compliant?
Yes, it is RoHS compliant and has a lead-free construction.
- What is the output drive capability of this component?
The output drive capability is +/-24mA at 3.3V and up to +/-32mA at 5V.
- Is the component qualified for automotive applications?
Yes, it is AEC-Q100 qualified for automotive applications.
