Overview
The 74LVC1G11GV-Q100125 is a single 3-input AND gate produced by NXP USA Inc. This component is part of the 74LVC1G11-Q100 series, which is automotive qualified to the AEC-Q100 (Grade 1) standard. It is designed to operate in a wide range of environments, making it suitable for various applications, including automotive, industrial, and consumer electronics.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74LVC1G11GV-Q100 | 1.65 - 5.5 | CMOS/LVTTL | ± 32 | 2.6 | 175 | 1 | low | -40 to +125 | 261 | 63 | 172 | TSOP6 |
Key Features
- Wide Supply Voltage Range: Operates from 1.65 V to 5.5 V.
- Overvoltage Tolerant Inputs: Inputs can be driven from either 3.3 V or 5 V devices, making it suitable for mixed voltage environments.
- Schmitt-trigger Action: Provides high noise immunity and tolerance to slower input rise and fall times.
- Low Power Dissipation: CMOS technology ensures low power consumption.
- Direct Interface with TTL Levels: Compatible with TTL logic levels.
- Automotive Qualified: Meets AEC-Q100 (Grade 1) standards for automotive applications.
- IOFF Circuitry: Prevents backflow current when the device is powered down.
Applications
The 74LVC1G11GV-Q100125 is versatile and can be used in a variety of applications, including:
- Automotive Systems: Suitable for use in automotive electronics due to its AEC-Q100 qualification.
- Industrial Control Systems: Can be used in industrial environments where reliability and robustness are critical.
- Consumer Electronics: Applicable in consumer devices that require low power consumption and high noise immunity.
- Mixed Voltage Environments: Ideal for translating signals between 3.3 V and 5 V devices.
Q & A
- What is the supply voltage range of the 74LVC1G11GV-Q100125?
The supply voltage range is from 1.65 V to 5.5 V. - Is the 74LVC1G11GV-Q100125 automotive qualified?
Yes, it is qualified to the AEC-Q100 (Grade 1) standard. - What is the output drive capability of the 74LVC1G11GV-Q100125?
The output drive capability is ± 32 mA. - What is the maximum propagation delay of the 74LVC1G11GV-Q100125?
The maximum propagation delay is 2.6 ns. - What is the maximum operating frequency of the 74LVC1G11GV-Q100125?
The maximum operating frequency is 175 MHz. - What package types are available for the 74LVC1G11GV-Q100125?

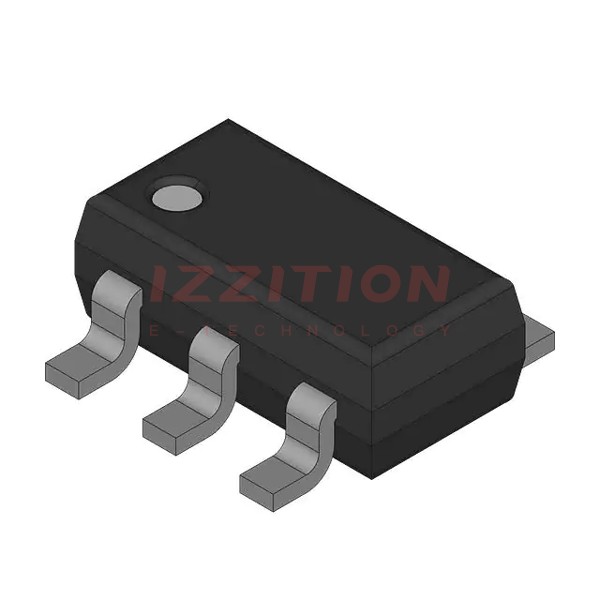

The component is available in TSOP6 (SOT457) package. - Does the 74LVC1G11GV-Q100125 have Schmitt-trigger action?
Yes, it has Schmitt-trigger action at all inputs. - Is the 74LVC1G11GV-Q100125 compatible with TTL logic levels?
Yes, it is compatible with TTL logic levels. - What is the temperature range for the 74LVC1G11GV-Q100125?
The operating temperature range is from -40 °C to +125 °C. - Does the 74LVC1G11GV-Q100125 have IOFF circuitry?
Yes, it has IOFF circuitry to prevent backflow current when powered down.
