Overview
The 74LVC11PW/AU118 is a dual 3-input AND gate integrated circuit produced by NXP USA Inc. (now part of Nexperia). This component is part of the 74LVC series, known for its low power consumption and wide supply voltage range. It is designed to operate in various electronic systems, providing reliable logic functions across different voltage levels.
Key Specifications
| Parameter | Value |
|---|---|
| VCC (V) | 1.2 - 3.6 |
| Logic Switching Levels | TTL |
| Input Voltage | Up to 5.5 V |
| Output Drive Capability (mA) | ± 24 |
| Propagation Delay (ns) | 3.7 |
| Maximum Frequency (MHz) | 150 |
| Number of Bits | 3 |
| Power Dissipation | Low |
| Operating Temperature (°C) | -40 to +125 |

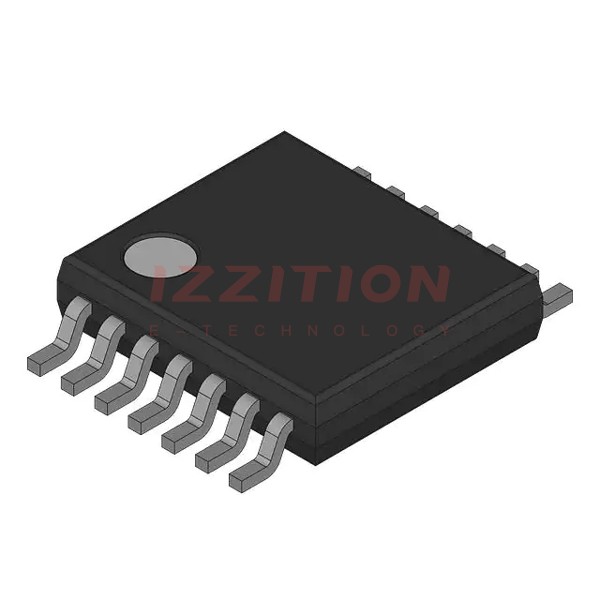

| Package | TSSOP14 (SOT402-1) |
Key Features
- Wide supply voltage range from 1.2 V to 3.6 V.
- Inputs accept voltages up to 5.5 V.
- CMOS low power consumption.
- Direct interface with TTL levels.
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V) and CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V).
- Complies with JEDEC standards: JESD8-7A, JESD8-5A, and JESD8-C/JESD36.
Applications
The 74LVC11PW/AU118 is versatile and can be used in a variety of applications across different industries, including:
- Automotive systems.
- Industrial control systems.
- Consumer electronics.
- Mobile devices.
- Wearable technology.
- Computing and power management systems.
Q & A
- What is the supply voltage range of the 74LVC11PW/AU118?
The supply voltage range is from 1.2 V to 3.6 V. - What is the maximum input voltage for the 74LVC11PW/AU118?
The inputs can accept voltages up to 5.5 V. - What is the power consumption of the 74LVC11PW/AU118?
The component has CMOS low power consumption. - Does the 74LVC11PW/AU118 support TTL levels?
Yes, it has a direct interface with TTL levels. - What is the ESD protection level of the 74LVC11PW/AU118?
It has ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V) and CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V). - What are the operating temperature ranges for the 74LVC11PW/AU118?
The operating temperature ranges are from -40 °C to +125 °C. - What package type is the 74LVC11PW/AU118 available in?
The component is available in a TSSOP14 (SOT402-1) package. - Is the 74LVC11PW/AU118 compliant with any specific standards?
Yes, it complies with JEDEC standards: JESD8-7A, JESD8-5A, and JESD8-C/JESD36. - What is the maximum propagation delay of the 74LVC11PW/AU118?
The maximum propagation delay is 3.7 ns. - What is the maximum frequency of operation for the 74LVC11PW/AU118?
The maximum frequency of operation is 150 MHz.
