Overview
The 74LVC08APW/S505118 is a quad 2-input AND gate produced by NXP USA Inc., now part of Nexperia. This high-performance, low-power, low-voltage CMOS device is designed to operate in a wide range of applications, particularly in mixed 3.3 V and 5 V environments. It features Schmitt-trigger action at all inputs, making it tolerant of slower input rise and fall times, and it is overvoltage tolerant up to 5.5 V.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Nr of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74LVC08APW | 1.2 - 3.6 | TTL | ± 24 | 2.1 | 150 | 4 | Low | -40 to +125 | 144 | 8.4 | 70 | TSSOP14 (SOT402-1) |
Key Features
- Wide Supply Voltage Range: Operates from 1.2 V to 3.6 V.
- Input Voltage Tolerance: Inputs can be driven from either 3.3 V or 5 V devices, making it suitable for mixed voltage applications.
- Schmitt-trigger Action: Tolerant of slower input rise and fall times.
- Overvoltage Tolerance: Inputs are overvoltage tolerant up to 5.5 V.
- Low Power Consumption: CMOS technology ensures low power consumption.
- Direct Interface with TTL Levels: Compatible with TTL logic levels.
- ESD Protection: HBM (Human Body Model) exceeds 2000 V and CDM (Charged Device Model) exceeds 1000 V.
Applications
The 74LVC08APW/S505118 is versatile and can be used in a variety of applications across different industries, including:
- Automotive Systems: For logic functions in automotive electronics.
- Industrial Control Systems: In control circuits and logic gates.
- Consumer Electronics: In mobile devices, wearables, and other consumer electronics.
- Computing and Networking: For logic operations in computing and networking equipment.
Q & A
- What is the primary function of the 74LVC08APW/S505118?
The primary function is to act as a quad 2-input AND gate.
- What is the supply voltage range for this component?
The supply voltage range is from 1.2 V to 3.6 V.
- Can the inputs be driven from both 3.3 V and 5 V devices?
- What is the maximum operating temperature for this component?
The maximum operating temperature is +125 °C.
- Does the component have ESD protection?
- What package type is used for the 74LVC08APW/S505118?

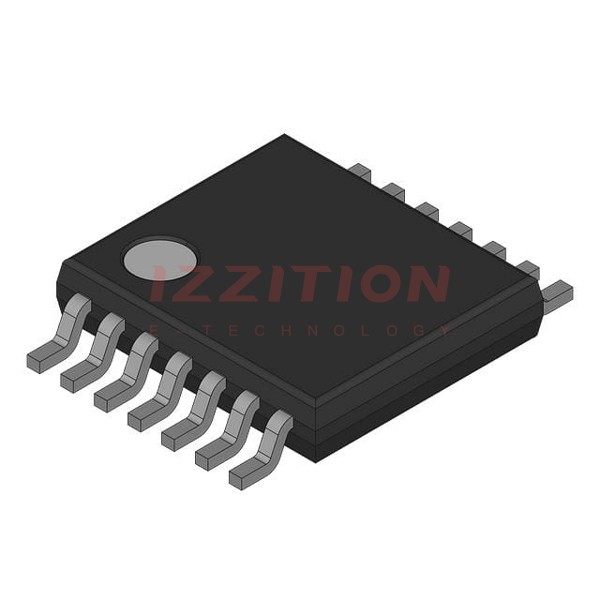

The package type is TSSOP14 (SOT402-1).
- Is the component compliant with any specific standards?
- What is the output drive capability of the component?
The output drive capability is ± 24 mA.
- What is the typical propagation delay of the component?
The typical propagation delay is 2.1 ns.
- Can the component be used in automotive applications?
