Overview
The 74HCT86D/C118 is a quad 2-input EXCLUSIVE-OR gate integrated circuit produced by NXP USA Inc. This component is part of the 74HCT series, which is known for its compatibility with TTL (Transistor-Transistor Logic) input levels. The 74HCT86D/C118 is designed to operate over a wide supply voltage range, making it versatile for various digital logic applications.
Key Specifications
| Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| VCC (Supply Voltage) | 2.0 | 6.0 | V | ||
| VIH (HIGH-level input voltage) | VCC = 4.5 V to 5.5 V | 2.0 | 1.6 | 2.0 | V |
| VIL (LOW-level input voltage) | VCC = 4.5 V to 5.5 V | 0.8 | 1.2 | V | |
| VOH (HIGH-level output voltage) | IO = -4.0 mA, VCC = 4.5 V | 3.98 | 4.32 | 3.84 | V |
| VOL (LOW-level output voltage) | IO = 5.2 mA, VCC = 6.0 V | 0.16 | 0.26 | 0.33 | V |
| ICC (Supply Current) | VI = VCC or GND, IO = 0 A, VCC = 6.0 V | 2.0 | 40 | μA | |
| tpd (Propagation Delay) | VCC = 4.5 V, CL = 15 pF | 17 | 32 | 48 | ns |
| tt (Transition Time) | VCC = 4.5 V | 7 | 15 | 22 | ns |
| CPD (Power Dissipation Capacitance) | Per package, VI = GND to VCC | 30 | pF |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V, making it suitable for a variety of applications.
- CMOS Low Power Dissipation: Low power consumption, which is beneficial for battery-powered devices and energy-efficient designs.
- High Noise Immunity: Robust against noise, ensuring reliable operation in noisy environments.
- Latch-up Performance: Exceeds 100 mA per JESD 78 Class II Level B, providing high reliability against latch-up conditions.
- TTL Compatible Inputs: Compatible with TTL input levels, facilitating integration with TTL-based systems.
- ESD Protection: Includes ESD protection to safeguard against electrostatic discharge).
Applications
- Digital Logic Circuits: Ideal for use in digital logic circuits requiring EXCLUSIVE-OR operations).
- Embedded Systems: Suitable for embedded systems that require low power consumption and high noise immunity).
- Industrial Control Systems: Can be used in industrial control systems where reliability and robustness are critical).
- Consumer Electronics: Applicable in consumer electronics such as calculators, digital clocks, and other electronic devices).
Q & A
- What is the supply voltage range of the 74HCT86D/C118?
The supply voltage range is from 2.0 V to 6.0 V).
- What type of logic levels does the 74HCT86D/C118 support?
The 74HCT86D/C118 supports TTL (Transistor-Transistor Logic) input levels).
- What is the propagation delay of the 74HCT86D/C118?
The propagation delay is between 17 ns and 48 ns at VCC = 4.5 V and CL = 15 pF).
- Does the 74HCT86D/C118 have ESD protection?
- What is the maximum supply current of the 74HCT86D/C118?
The maximum supply current is 40 μA at VCC = 6.0 V).
- What is the package type of the 74HCT86D/C118?

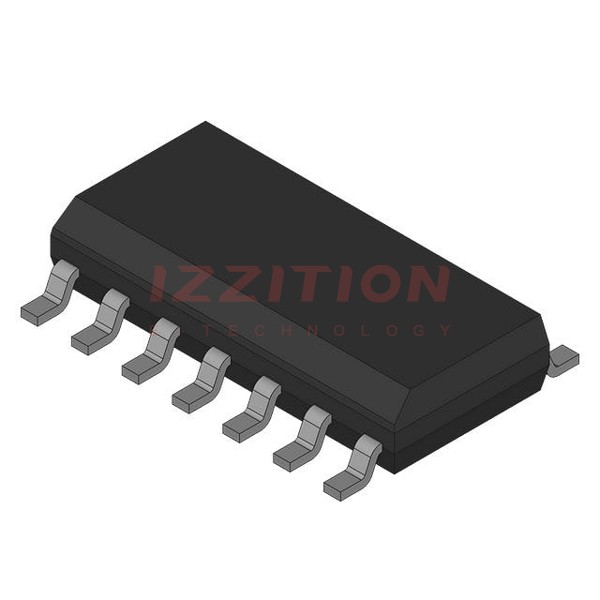

The package type is 14-SO (Small Outline)).
- Is the 74HCT86D/C118 RoHS compliant?
- What are the operating temperature ranges for the 74HCT86D/C118?
- How many channels does the 74HCT86D/C118 have?
- What is the typical transition time of the 74HCT86D/C118?
