Overview

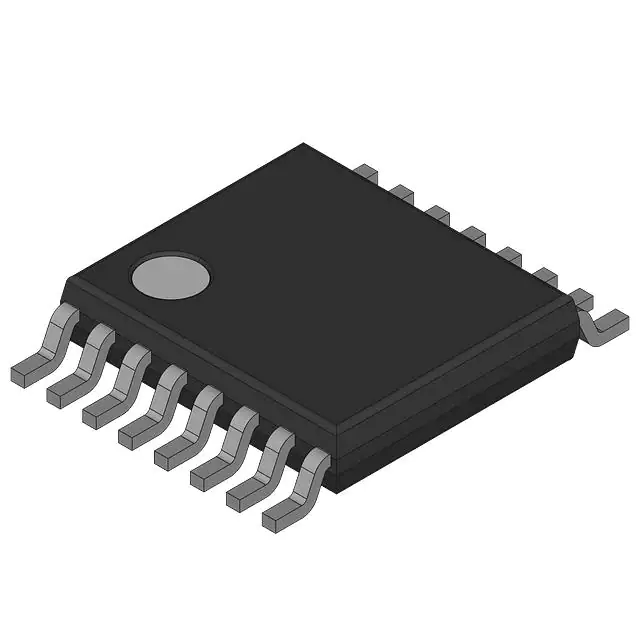

The 74HC4094PW/S400118 is a high-performance integrated circuit produced by NXP USA Inc. This component belongs to the 74HC series and is designed as an 8-bit serial-in/parallel-out shift register. It is widely used in various digital circuits for data processing and transmission. The device operates within a supply voltage range of 2V to 6V, making it versatile for different application environments. The 74HC4094PW/S400118 is packaged in a 16-TSSOP (Thin Shrink Small Outline Package) and is suitable for surface mount technology, enhancing its integration into modern electronic designs.
Key Specifications
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Voltage - Supply | 2V ~ 6V |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Mounting Type | Surface Mount |
| Logic Type | Shift Register |
| Function | Serial to Parallel, Serial |
| Output Type | Tri-State |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| RoHS Status | Not applicable |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Key Features
- High-Speed Operation: The 74HC4094PW/S400118 operates at high speeds, making it suitable for applications requiring rapid data processing.
- Low Power Consumption: With a supply voltage range of 2V to 6V, this device is energy-efficient and suitable for battery-powered devices.
- Tri-State Output: The device features tri-state outputs, which can be set to high, low, or high-impedance states, enhancing its flexibility in circuit design.
- Surface Mount Technology: Packaged in a 16-TSSOP, it is ideal for surface mount applications, reducing board space and improving reliability.
- Wide Operating Temperature Range: The component can operate over a temperature range of -40°C to 125°C, making it robust for various environmental conditions.
Applications
- Digital Signal Processing: Used in circuits that require serial-to-parallel data conversion, such as in audio and video processing systems.
- Communication Systems: Employed in serial communication protocols for data transmission and reception.
- Embedded Systems: Integrated into microcontroller and microprocessor systems for data handling and storage.
- Industrial Automation: Utilized in control systems for industrial automation, where serial data needs to be converted to parallel format.
Q & A
- What is the primary function of the 74HC4094PW/S400118? The primary function is to act as an 8-bit serial-in/parallel-out shift register.
- What is the supply voltage range for this component? The supply voltage range is 2V to 6V.
- What type of package does the 74HC4094PW/S400118 come in? It comes in a 16-TSSOP package.
- What is the operating temperature range of this device? The operating temperature range is -40°C to 125°C.
- Is the 74HC4094PW/S400118 RoHS compliant? It is not applicable for RoHS compliance.
- What is the moisture sensitivity level (MSL) of this component? The MSL is 3 (168 hours).
- What are the typical applications of the 74HC4094PW/S400118? Typical applications include digital signal processing, communication systems, embedded systems, and industrial automation.
- What is the output type of the 74HC4094PW/S400118? The output type is tri-state.
- How many bits per element does the 74HC4094PW/S400118 have? It has 8 bits per element.
- What is the ECCN classification for this component? The ECCN classification is EAR99.
