Overview
The 74HC32PW/AU118 is a quad 2-input OR gate integrated circuit (IC) produced by NXP USA Inc., now part of Nexperia. This component is part of the 74HC series, known for its high performance and versatility in various electronic designs. The 74HC32PW is designed to operate within a wide supply voltage range, making it suitable for a broad range of applications.
Key Specifications
| Type number | VCC (V) | Logic switching levels | Output drive capability (mA) | tpd (ns) | fmax (MHz) | Number of bits | Power dissipation considerations | Tamb (°C) | Rth(j-a) (K/W) | Ψth(j-top) (K/W) | Rth(j-c) (K/W) | Package name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 74HC32PW | 2.0 - 6.0 | CMOS | ± 5.2 | 6.0 | 36 | 4 | Low | -40 ~ 125 | 142 | 8.1 | 68 | TSSOP14 |
Key Features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V)
- Symmetrical output impedance and balanced propagation delays
- ESD protection: HBM (ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V) and CDM (ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V)

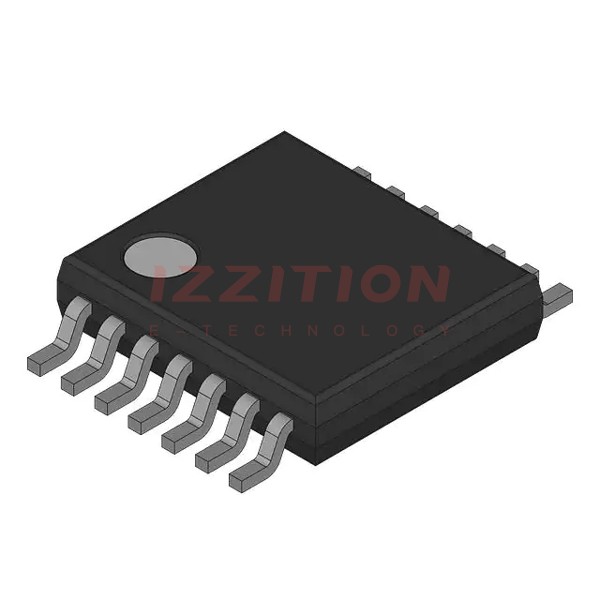

- Multiple package options, including TSSOP14
Applications
The 74HC32PW is widely used in various electronic designs across different industries, including:
- Automotive systems
- Industrial control systems
- Consumer electronics
- Mobile devices
- Wearable technology
- Computing and power management systems
Q & A
- What is the supply voltage range of the 74HC32PW?
The supply voltage range is from 2.0 to 6.0 V.
- What type of logic switching levels does the 74HC32PW use?
The 74HC32PW uses CMOS logic switching levels.
- What is the output drive capability of the 74HC32PW?
The output drive capability is ± 5.2 mA.
- What is the maximum propagation delay of the 74HC32PW?
The maximum propagation delay is 6.0 ns.
- What is the maximum operating frequency of the 74HC32PW?
The maximum operating frequency is 36 MHz.
- What is the package type of the 74HC32PW?
The package type is TSSOP14.
- What are the operating temperature ranges for the 74HC32PW?
The operating temperature ranges are from -40 °C to +125 °C.
- Does the 74HC32PW have ESD protection?
- What industries can the 74HC32PW be used in?
- Is the 74HC32PW compliant with JEDEC standards?
