Overview
The 74HC2G17GW/C125 is a dual non-inverting Schmitt trigger buffer produced by Nexperia, which is a subsidiary of NXP. This component is part of the 74HC family and is designed to provide high noise immunity and sharp, jitter-free output signals from slowly changing input signals.
It features a wide supply voltage range, low power dissipation, and balanced propagation delays, making it suitable for a variety of applications in digital circuits.
Key Specifications
| Parameter | Value |
|---|---|
| Type Number | 74HC2G17GW |
| Supply Voltage (VCC) | 2.0 V to 6.0 V |
| Logic Switching Levels | CMOS |
| Output Drive Capability | ± 5.2 mA |
| Maximum Frequency (fmax) | 36 MHz |
| Number of Bits | 2 |
| Power Dissipation | Low power dissipation |
| Operating Temperature (Tamb) | -40 °C to +125 °C |

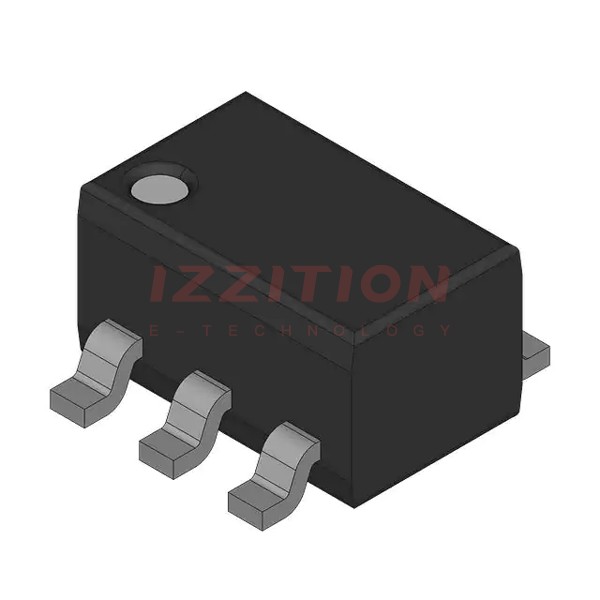

| Package | TSSOP6 (SOT363-2) |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V.
- Low Power Dissipation: CMOS technology ensures low power consumption.
- High Noise Immunity: Schmitt trigger inputs provide high noise immunity and transform slowly changing input signals into sharply defined output signals.
- Unlimited Input Rise and Fall Times: No restrictions on input signal rise and fall times.
- Balanced Propagation Delays: Ensures consistent and balanced signal propagation.
- ESD Protection: High ESD protection levels (HBM and CDM compliant).
- Compliance with JEDEC Standards: Complies with JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V) standards.
Applications
- Digital Signal Processing: Ideal for applications requiring sharp, jitter-free output signals from slowly changing input signals.
- Noise Reduction: Useful in environments where high noise immunity is crucial.
- General Logic Circuits: Suitable for various digital logic circuits requiring non-inverting buffer functions.
- Automotive and Industrial Systems: Can be used in automotive and industrial applications due to its wide operating temperature range and robust ESD protection.
Q & A
- What is the supply voltage range of the 74HC2G17GW/C125?
The supply voltage range is from 2.0 V to 6.0 V.
- What type of logic switching levels does the 74HC2G17GW/C125 support?
The component supports CMOS logic switching levels.
- What is the maximum frequency (fmax) of the 74HC2G17GW/C125?
The maximum frequency is 36 MHz.
- What is the output drive capability of the 74HC2G17GW/C125?
The output drive capability is ± 5.2 mA.
- What type of package does the 74HC2G17GW/C125 come in?
The component comes in a TSSOP6 (SOT363-2) package.
- What are the operating temperature ranges for the 74HC2G17GW/C125?
The operating temperature range is from -40 °C to +125 °C.
- Does the 74HC2G17GW/C125 have ESD protection?
Yes, it has high ESD protection levels (HBM and CDM compliant).
- Is the 74HC2G17GW/C125 compliant with JEDEC standards?
Yes, it complies with JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V) standards.
- What are some typical applications of the 74HC2G17GW/C125?
It is used in digital signal processing, noise reduction, general logic circuits, and automotive and industrial systems.
- How can I purchase the 74HC2G17GW/C125?
You can purchase it through various distributors listed on the Nexperia website or other electronic component suppliers like DigiPart, JLCPCB, etc..
