Overview

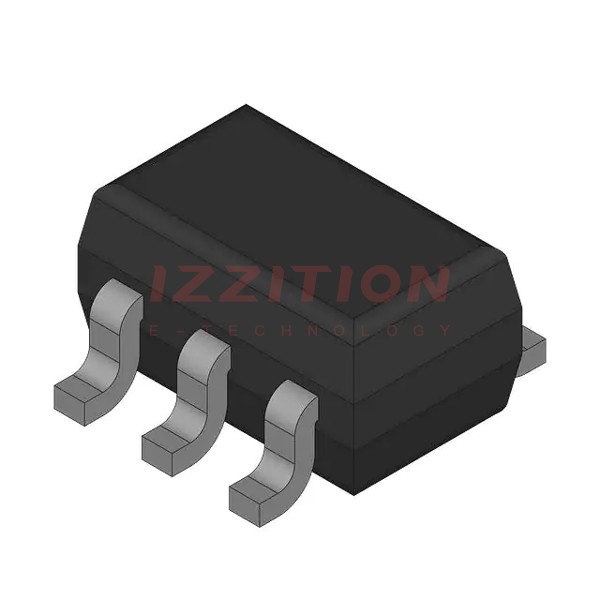

The 74HC1G32GW/S400125 is a single 2-input OR gate integrated circuit produced by NXP USA Inc. This component is part of the 74HC series, known for its high-speed CMOS logic. It is designed to operate within a wide supply voltage range, making it versatile for various electronic designs. The 74HC1G32GW/S400125 is packaged in a 5-TSSOP (SOT353-1) case, which is compact and suitable for surface mount applications.
Key Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Voltage - Supply | 2V ~ 6V |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Number of Inputs | 2 |
| Number of Circuits | 1 |
| Logic Type | OR Gate |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 23ns @ 6V, 50pF |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Key Features
- Wide Supply Voltage Range: Operates from 2.0 V to 6.0 V, making it versatile for various applications.
- CMOS Low Power Dissipation: Low power consumption, which is beneficial for energy-efficient designs.
- High Noise Immunity: Ensures reliable operation in noisy environments.
- Symmetrical Output Impedance: Balanced output characteristics for consistent performance.
- Clamp Diodes on Inputs: Allows the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Latch-up Performance: Exceeds 100 mA per JESD78 Class II Level B.
- ESD Protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
Applications
The 74HC1G32GW/S400125 is widely used in various electronic designs across different industries, including:
- Automotive Systems: For logic functions in automotive electronics.
- Industrial Control Systems: In control circuits and logic gates.
- Consumer Electronics: In mobile devices, wearables, and other consumer products.
- Computing and Networking: For logic operations in computing and networking equipment.
- Power Management Systems: To manage and control power supply logic.
Q & A
- What is the package type of the 74HC1G32GW/S400125?
The 74HC1G32GW/S400125 is packaged in a 5-TSSOP (SOT353-1) case.
- What is the operating voltage range of the 74HC1G32GW/S400125?
The operating voltage range is from 2.0 V to 6.0 V.
- What is the maximum propagation delay of the 74HC1G32GW/S400125?
The maximum propagation delay is 23ns @ 6V, 50pF.
- Does the 74HC1G32GW/S400125 have ESD protection?
- What is the quiescent current of the 74HC1G32GW/S400125?
The quiescent current is 20 µA.
- What are the input logic levels for the 74HC1G32GW/S400125?
The input logic levels are 0.5V ~ 1.8V for low and 1.5V ~ 4.2V for high.
- Is the 74HC1G32GW/S400125 RoHS compliant?
The component is not specifically marked as RoHS compliant in the provided sources, but it is generally expected to meet RoHS standards given its modern design.
- What is the moisture sensitivity level (MSL) of the 74HC1G32GW/S400125?
The MSL is 3 (168 Hours).
- In what temperature range can the 74HC1G32GW/S400125 operate?
The operating temperature range is from -40°C to 125°C.
- What are some common applications of the 74HC1G32GW/S400125?
It is used in automotive systems, industrial control systems, consumer electronics, computing and networking, and power management systems.
