Overview
The 74HC04PW/AU118 is a hex inverter integrated circuit produced by Nexperia (formerly NXP USA Inc.). This component is part of the 74HC series, known for its high performance and low power consumption. The 74HC04PW/AU118 is designed to provide six independent inverter gates, each capable of inverting a single input signal.
This IC is widely used in various electronic designs due to its versatility, high noise immunity, and compliance with multiple industry standards. It is suitable for applications across different industries, including automotive, industrial, mobile, and consumer electronics.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Supply Voltage Range | 2.0 - 6.0 | V |
| Logic Switching Levels | CMOS | - |
| Output Drive Capability | ± 5.2 | mA |
| Maximum Frequency | 36 | MHz |
| Number of Bits | 6 | - |
| Operating Temperature Range | -40 to +125 | °C |

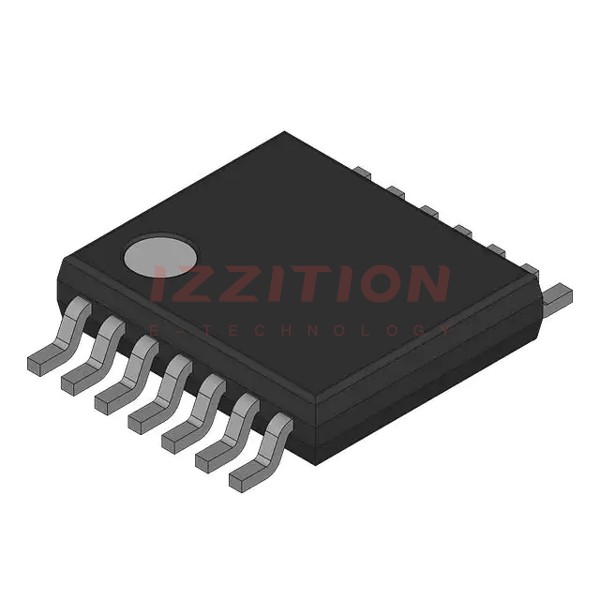

| Package Type | TSSOP14 (SOT402-1) | - |
| ESD Protection | HBM: ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2000 V, CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V | - |
Key Features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Compliance with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V)
- Input levels: CMOS level for 74HC04
- Multiple package options available
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Applications
The 74HC04PW/AU118 is versatile and can be used in a wide range of applications across various industries, including:
- Automotive systems for signal processing and logic operations
- Industrial control systems for reliable and efficient operation
- Mobile and consumer electronics for power-efficient designs
- Computing and power management systems requiring low power dissipation
- Wearable devices and IoT applications where space and power efficiency are critical
Q & A
- What is the supply voltage range of the 74HC04PW/AU118?
The supply voltage range is from 2.0 V to 6.0 V.
- What is the logic switching level for the 74HC04PW/AU118?
The logic switching level is CMOS.
- What is the output drive capability of the 74HC04PW/AU118?
The output drive capability is ± 5.2 mA.
- What is the maximum frequency of operation for the 74HC04PW/AU118?
The maximum frequency is 36 MHz.
- How many inverter gates does the 74HC04PW/AU118 contain?
The IC contains six independent inverter gates.
- What is the operating temperature range for the 74HC04PW/AU118?
The operating temperature range is from -40 °C to +125 °C.
- What type of package is the 74HC04PW/AU118 available in?
The IC is available in a TSSOP14 (SOT402-1) package.
- What level of ESD protection does the 74HC04PW/AU118 offer?
The IC offers HBM: ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2000 V and CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V ESD protection.
- Is the 74HC04PW/AU118 compliant with any industry standards?
Yes, it complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) and JESD7A (2.0 V to 6.0 V).
- What are some common applications for the 74HC04PW/AU118?
Common applications include automotive, industrial, mobile, and consumer electronics, as well as computing and power management systems.
