Overview

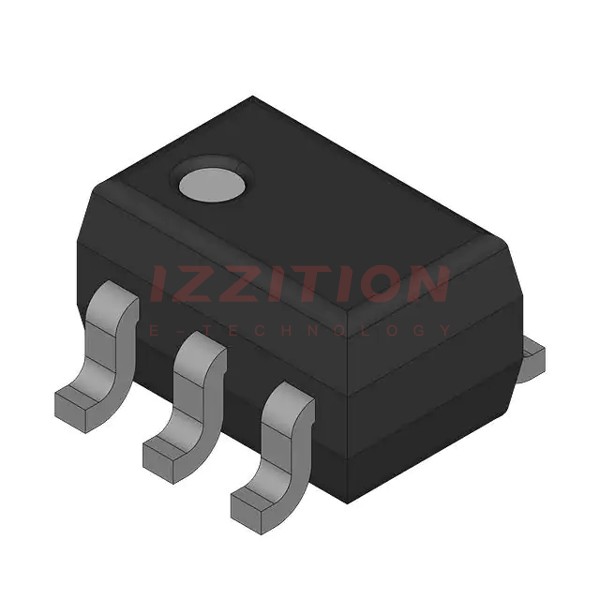

The 74AHCT1G32GW,125 is a high-speed Si-gate CMOS logic gate produced by Nexperia. This component provides a single 2-input OR gate function and is part of the AHCT series, known for its TTL input switching levels and compatibility with a supply voltage range of 4.5 V to 5.5 V. It is packaged in a TSSOP-5 surface mount package, making it suitable for a variety of digital logic applications.
Key Specifications
| Attribute | Value |
|---|---|
| Logic Circuit | OR Gate |
| No of Functions / Channels | 1 |
| Supply Voltage-Nom | 4.5 V to 5.5 V |
| Power Dissipation | 250 mW |
| Propagation Delay | 4.8 ns |
| Operating Temperature | -40°C to +125°C |
| Capacitance | 1.5 pF |
| No of Inputs | 2 |
| No of Outputs | Single |
| High Level Output Current | -8 mA |
| Low Level Output Current | 8 mA |
| No of Pins | 5 |
| Quiescent Current | 1 µA |
| Moisture Sensitivity Level | 1 |
| Package Style | TSSOP-5 |
| Mounting Method | Surface Mount |
Key Features
- Symmetrical output impedance
- High noise immunity
- ESD protection: HBM JESD22-A114E exceeds 2000 V, MM JESD22-A115-A exceeds 200 V, CDM JESD22-C101C exceeds 1000 V
- Low power dissipation
- Balanced propagation delays
- Specified from -40°C to +125°C
Applications
The 74AHCT1G32GW,125 is suitable for various digital logic applications where high-speed and low power consumption are critical. It can be used in systems requiring TTL-compatible input levels and CMOS output levels, such as in digital circuits, microcontrollers, and other electronic devices that require logical operations.
Q & A
- What is the primary function of the 74AHCT1G32GW,125? The primary function is to provide a single 2-input OR gate.
- What is the supply voltage range for this component? The supply voltage range is 4.5 V to 5.5 V.
- What is the propagation delay of the 74AHCT1G32GW,125? The propagation delay is 4.8 ns.
- What is the operating temperature range for this component? The operating temperature range is -40°C to +125°C.
- What type of package does the 74AHCT1G32GW,125 come in? It comes in a TSSOP-5 surface mount package.
- What are the ESD protection levels for this component? ESD protection levels include HBM JESD22-A114E exceeding 2000 V, MM JESD22-A115-A exceeding 200 V, and CDM JESD22-C101C exceeding 1000 V.
- What is the quiescent current of the 74AHCT1G32GW,125? The quiescent current is 1 µA.
- Is the 74AHCT1G32GW,125 suitable for high-speed applications? Yes, it is designed for high-speed applications.
- What is the moisture sensitivity level of this component? The moisture sensitivity level is 1.
- Can the 74AHCT1G32GW,125 be used in systems requiring TTL-compatible input levels? Yes, it can be used in such systems.
