Overview

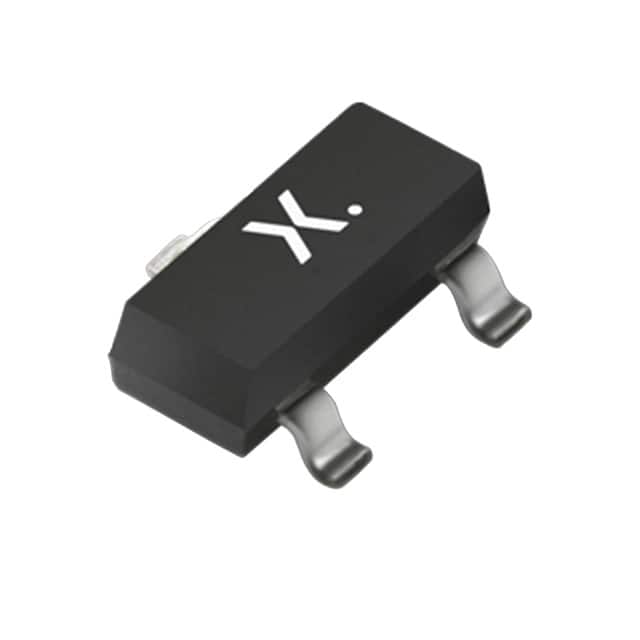

The PLVA659AVL is a Zener diode produced by Nexperia USA Inc., a global semiconductor company known for its high-quality discrete semiconductor products. This diode is designed for surface mount applications and is part of the PLVA series, which offers a range of voltage ratings and power handling capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Voltage (V_Z) | 5.9 V |
| Power Dissipation (P_D) | 250 mW |
| Tolerance | ±4% |
| Package Type | SOT23 / TO-236AB |
| Mounting Type | Surface Mount |
| RoHS Status | Lead Free / RoHS Compliant |
Key Features
- Voltage Regulation: The PLVA659AVL provides stable voltage regulation with a nominal voltage of 5.9 V.
- Low Power Consumption: With a power dissipation of 250 mW, this diode is suitable for applications where power efficiency is crucial.
- Precision Tolerance: The diode has a tight tolerance of ±4%, ensuring reliable performance in various circuits.
- Compact Package: The SOT23 / TO-236AB package makes it ideal for space-constrained designs.
- RoHS Compliance: The diode is lead-free and RoHS compliant, meeting environmental standards.
Applications
The PLVA659AVL Zener diode is versatile and can be used in a variety of applications, including:
- Voltage Regulation: In power supplies, voltage regulators, and voltage reference circuits.
- Overvoltage Protection: To protect electronic circuits from voltage spikes and surges.
- To limit signal voltages within a specified range.
- AUDIO AND RF CIRCUITS: In audio and RF circuits where stable voltage references are needed.
Q & A
- What is the nominal voltage of the PLVA659AVL Zener diode?
The nominal voltage of the PLVA659AVL Zener diode is 5.9 V. - What is the power dissipation of the PLVA659AVL?
The power dissipation of the PLVA659AVL is 250 mW. - What is the tolerance of the PLVA659AVL Zener diode?
The tolerance of the PLVA659AVL Zener diode is ±4%. - What package type does the PLVA659AVL come in?
The PLVA659AVL comes in SOT23 / TO-236AB packages. - Is the PLVA659AVL RoHS compliant?
Yes, the PLVA659AVL is lead-free and RoHS compliant. - What are some common applications of the PLVA659AVL?
The PLVA659AVL is commonly used in voltage regulation, overvoltage protection, signal clamping, and audio/RF circuits. - Where can I find the datasheet for the PLVA659AVL?
You can find the datasheet for the PLVA659AVL on the Nexperia website or through distributors like Digi-Key and Mouser. - Is the PLVA659AVL suitable for high-power applications?
No, the PLVA659AVL is not suitable for high-power applications due to its 250 mW power dissipation limit. - Can the PLVA659AVL be used in automotive applications?
While it can be used in various applications, it is not specifically automotive qualified. For automotive applications, look for AEC-Q100/Q101 qualified parts. - How do I ensure the correct mounting of the PLVA659AVL?
Ensure the correct mounting by following the surface mount guidelines provided in the datasheet and application notes.
