Overview

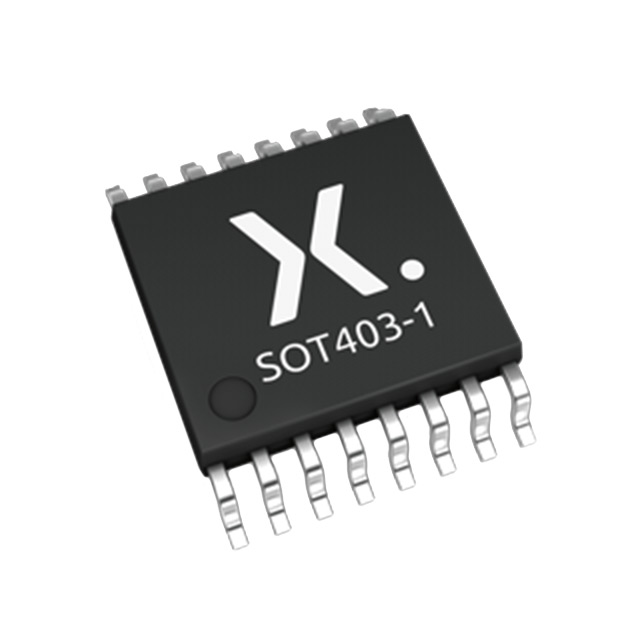

The NPIC6C596APWJ is an 8-bit serial-in/serial or parallel-out shift register manufactured by Nexperia USA Inc. This integrated circuit is designed with a storage register and features open-drain outputs, making it versatile for various digital logic applications. The device operates within a voltage range of 2.3V to 5.5V, ensuring compatibility with a wide range of electronic systems.
Key Specifications
| Specification | Value |
|---|---|
| Number of Bits | 8 |
| Input Type | Serial-in |
| Output Type | Serial or Parallel-out |
| Output Configuration | Open-drain |
| Operating Voltage Range | 2.3V to 5.5V |
| Package Type | TSSOP-16 |
| RoHS Compliance | Yes |
Key Features
- 8-bit serial-in/serial or parallel-out shift register
- Includes a storage register
- Open-drain outputs
- Operates within a voltage range of 2.3V to 5.5V
- TSSOP-16 package
- RoHS compliant
Applications
The NPIC6C596APWJ is suitable for a variety of digital logic applications, including data transfer and storage in digital systems, display drivers, and other serial-to-parallel or parallel-to-serial conversion needs. It is particularly useful in scenarios where data needs to be shifted or stored in a sequential manner.
Q & A
- What is the primary function of the NPIC6C596APWJ? The primary function is to act as an 8-bit serial-in/serial or parallel-out shift register.
- What is the operating voltage range of the NPIC6C596APWJ? The operating voltage range is 2.3V to 5.5V.
- What type of outputs does the NPIC6C596APWJ have? The NPIC6C596APWJ has open-drain outputs.
- What is the package type of the NPIC6C596APWJ? The package type is TSSOP-16.
- Is the NPIC6C596APWJ RoHS compliant? Yes, it is RoHS compliant.
- What are some common applications of the NPIC6C596APWJ? Common applications include data transfer and storage in digital systems, display drivers, and serial-to-parallel or parallel-to-serial conversion.
- Does the NPIC6C596APWJ include a storage register? Yes, it includes a storage register.
- Can the NPIC6C596APWJ be used in both serial and parallel output configurations? Yes, it can be used in both serial and parallel output configurations.
- Where can I find detailed specifications for the NPIC6C596APWJ? Detailed specifications can be found in the datasheet available on Nexperia's official website or through distributors like Digi-Key and Mouser.
- What is the significance of the 'APWJ' suffix in the part number? The 'APWJ' suffix indicates the specific package and configuration of the device, in this case, TSSOP-16 package.
